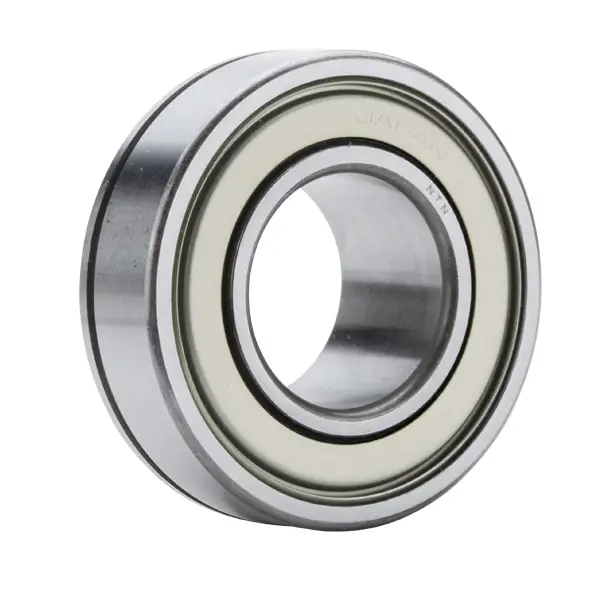

NTN ALS208-108N
Eccentric Locking Collar Type Bearings - Cylindrical O.D.
(BRAND)：NTN
(Availability)：In Stock
Technical Specifications
Type
Insert Bearing
Bore Type
Round
Bearing Type
Ball Bearing
Material
Through Hardened Steel
Ball Material
Steel
Limiting Speed - Grease
3700 RPM
Seal Type
Contact
Seal Material
Nitrile Rubber
Performance
Standard Duty
Radial Internal Clearance
CN
Static Load Rating
17800 N
Dynamic Load Rating
29100 N
Weight
2.220 kg
Operating Temperature Range
-40 to 120 ºC
Dimensional Specifications
d
38.100 mm
D
80.000 mm
C
9.000 mm
B
9.000 mm
B1
43.700 mm
r
1.500 mm
S
11.000 mm
r1
0.600 mm
b
2 mm
a
3.1 mm
D1
76.8 mm
Specifications
Radial Dynamic Load Rating
29100 N
Radial Static Load Rating
17800 N
