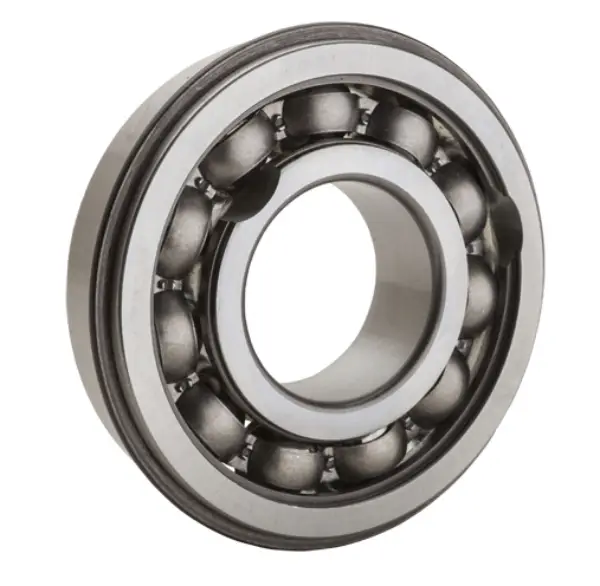

NTN BL206NR
Single Row Radial Ball Bearings
(BRAND)：NTN
(Availability)：In Stock
Technical Specifications
Type
Deep Groove Ball Bearing
Bore Type
Round
Material
High Carbon Chrome Steel
Cage Type
Pressed
Cage Material
Steel
Ball Material
Steel
Limiting Speed - Oil
12000 RPM
Limiting Speed - Grease
10000 RPM
Style
Maximum Capacity
Precision
ISO Class 0
Configuration
One
Radial Internal Clearance
CN
Static Load Rating
16240 N
Dynamic Load Rating
24920 N
Enclosure
Open
Weight
0.211 kg
Operating Temperature Range
-40 to 120 ºC

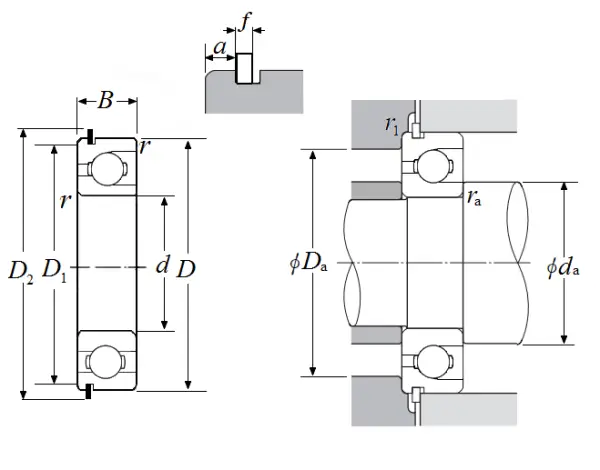

Dimensional Specifications
d
30.000 mm
D
62.000 mm
B
16.000 mm
D1
59.610 mm
D2
67.700 mm
a
3.280 mm
f
1.700 mm
r
1.000 mm
r1
0.500 mm
da min
35.000 mm
da max
39.000 mm
Da max
39.000 mm
ras max
1.000 mm
