NTN BL208ZZNR
Single Row Radial Ball Bearings
(BRAND)：NTN
(Availability)：In Stock
Technical Specifications
Type
Deep Groove Ball Bearing
Bore Type
Round
Material
High Carbon Chrome Steel
Cage Type
Pressed
Cage Material
Steel
Ball Material
Steel
Limiting Speed - Grease
7800 RPM
Precision
ISO Class 0
Configuration
One
Radial Internal Clearance
CN
Enclosure
Double Shielded
Weight
0.406 kg
Operating Temperature Range
-40 to 120 ºC

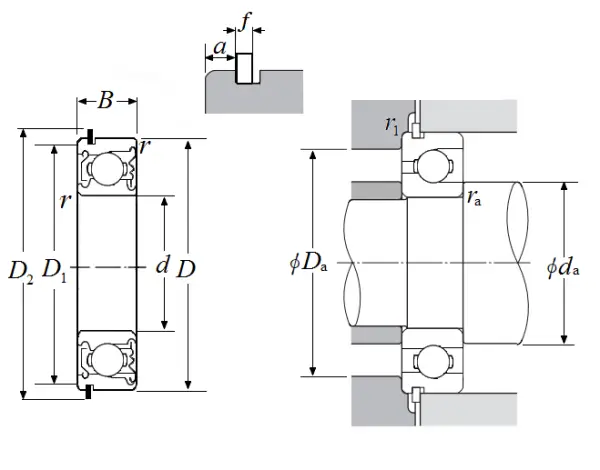

Dimensional Specifications
d
40.000 mm
D
80.000 mm
B
18.000 mm
D1
76.810 mm
D2
86.600 mm
a
3.280 mm
f
1.650 mm
r
1.100 mm
r1
0.500 mm
da min
46.500 mm
da max
51.000 mm
Da max
73.500 mm
ras max
1.000 mm
