NTN BL210NR
Single Row Radial Ball Bearings
(BRAND)：NTN
(Availability)：In Stock
Technical Specifications
Type
Deep Groove Ball Bearing
Bore Type
Round
Material
High Carbon Chrome Steel
Cage Type
Pressed
Cage Material
Steel
Ball Material
Steel
Limiting Speed - Oil
7500 RPM
Limiting Speed - Grease
6400 RPM
Style
Maximum Capacity
Precision
ISO Class 0
Configuration
One
Radial Internal Clearance
CN
Static Load Rating
34930 N
Dynamic Load Rating
45835 N
Enclosure
Open
Weight
0.518 kg
Operating Temperature Range
-40 to 120 ºC

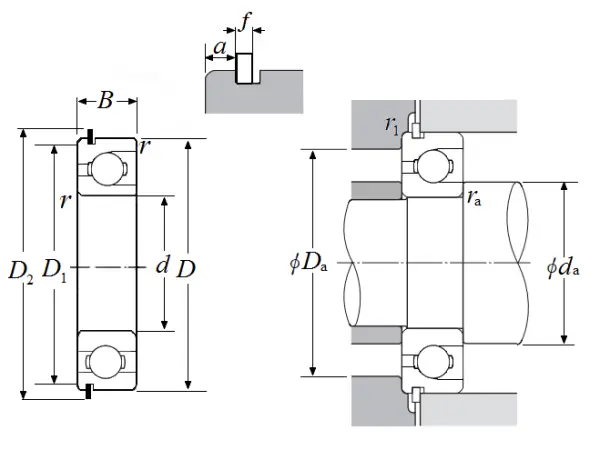

Dimensional Specifications
d
50.000 mm
D
90.000 mm
B
20.000 mm
D1
86.790 mm
D2
96.500 mm
a
3.280 mm
f
2.460 mm
r
1.100 mm
r1
0.500 mm
da min
56.500 mm
da max
60.000 mm
Da max
96.500 mm
ras max
1.000 mm
