NTN BL211NR
Single Row Radial Ball Bearings
(BRAND)：NTN
(Availability)：In Stock
Technical Specifications
Type
Deep Groove Ball Bearing
Bore Type
Round
Material
High Carbon Chrome Steel
Cage Type
Pressed
Cage Material
Steel
Ball Material
Steel
Limiting Speed - Oil
6800 RPM
Limiting Speed - Grease
5800 RPM
Style
Maximum Capacity
Precision
ISO Class 0
Configuration
One
Radial Internal Clearance
CN
Static Load Rating
43830 N
Dynamic Load Rating
56960 N
Enclosure
Open
Weight
0.681 kg
Operating Temperature Range
-40 to 120 ºC

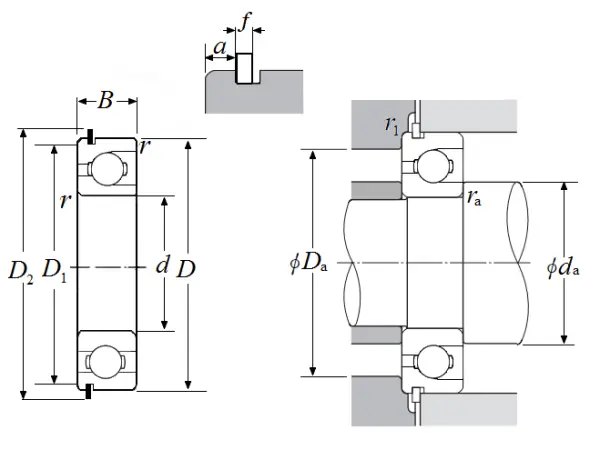

Dimensional Specifications
d
55.000 mm
D
100.000 mm
B
21.000 mm
D1
96.800 mm
D2
106.500 mm
a
3.280 mm
f
2.460 mm
r
1.500 mm
r1
0.500 mm
da min
63.000 mm
da max
67.000 mm
Da max
67.000 mm
ras max
1.500 mm
