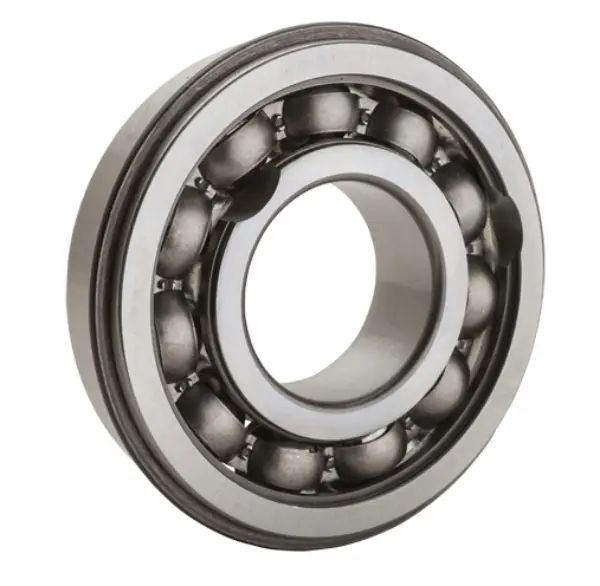

NTN BL213NR
Single Row Radial Ball Bearings
(BRAND)：NTN
(Availability)：In Stock
Technical Specifications
Type
Deep Groove Ball Bearing
Bore Type
Round
Material
High Carbon Chrome Steel
Cage Type
Pressed
Cage Material
Steel
Ball Material
Steel
Limiting Speed - Oil
5800 RPM
Limiting Speed - Grease
4900 RPM
Style
Maximum Capacity
Precision
ISO Class 0
Configuration
One
Radial Internal Clearance
CN
Static Load Rating
60075 N
Dynamic Load Rating
75205 N
Enclosure
Open
Weight
1.115 kg
Operating Temperature Range
-40 to 120 ºC

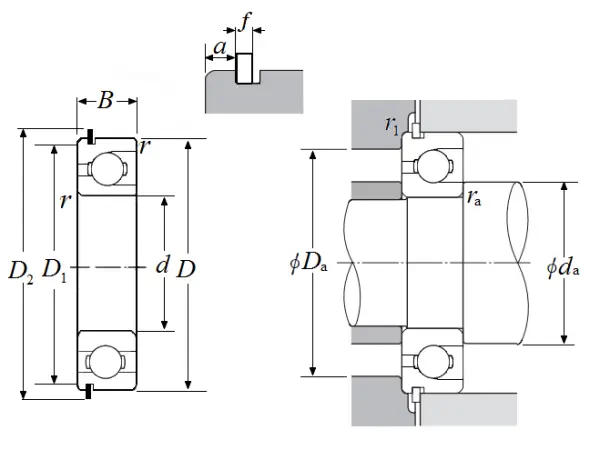

Dimensional Specifications
d
65.000 mm
D
120.000 mm
B
23.000 mm
D1
115.210 mm
D2
129.700 mm
a
4.060 mm
f
2.820 mm
r
1.500 mm
r1
0.500 mm
da min
73.000 mm
da max
80.500 mm
Da max
80.500 mm
ras max
1.500 mm
