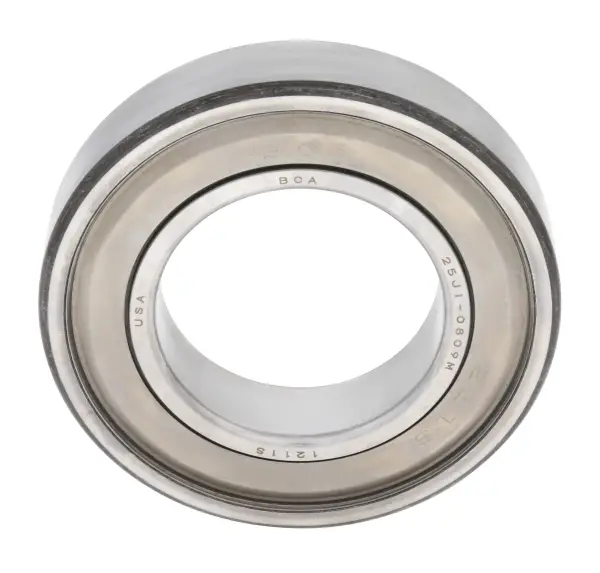

NTN BL216Z
Single Row Radial Ball Bearings
(BRAND)：NTN
(Availability)：In Stock
Technical Specifications
Type
Deep Groove Ball Bearing
Bore Type
Round
Material
High Carbon Chrome Steel
Cage Type
Pressed
Cage Material
Steel
Ball Material
Steel
Limiting Speed - Oil
4700 RPM
Limiting Speed - Grease
4000 RPM
Precision
ISO Class 0
Configuration
One
Factor
131
Radial Internal Clearance
CN
Enclosure
Single Shielded
Operating Temperature Range
-40 to 120 ºC
Dimensional Specifications
d
80.000 mm
D
140.000 mm
B
26.000 mm
r
2.000 mm
da min
89.000 mm
da max
95.500 mm
Da max
131.000 mm
ras max
2.000 mm
