NTN BL305ZZ
Single Row Radial Ball Bearings
(BRAND)：NTN
(Availability)：In Stock
Technical Specifications
Type
Deep Groove Ball Bearing
Bore Type
Round
Material
High Carbon Chrome Steel
Cage Type
Pressed
Cage Material
Steel
Ball Material
Steel
Limiting Speed - Grease
11000 RPM
Seal Type
None
Seal Material
None
Precision
ISO Class 0
Configuration
One
Radial Internal Clearance
CN
Static Load Rating
15500 N
Dynamic Load Rating
26900 N
Enclosure
Double Shielded
Weight
0.243 kg
Operating Temperature Range
-40 to 120 ºC

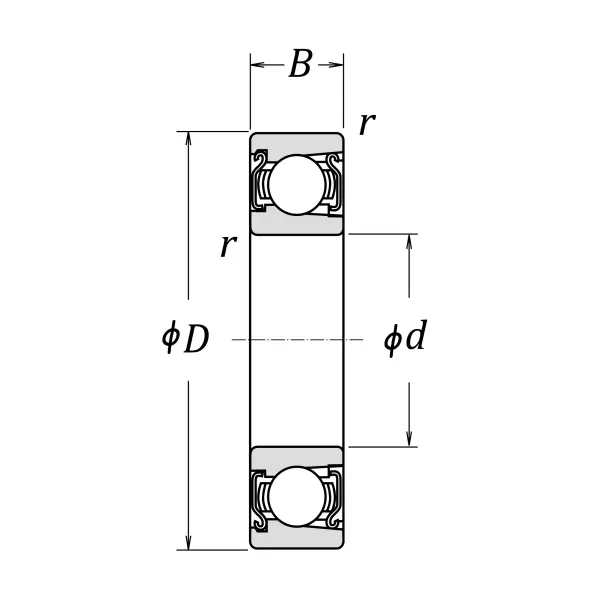

Dimensional Specifications
d
25.000 mm
D
62.000 mm
B
17.000 mm
r
1.100 mm
r1
1.100 mm
