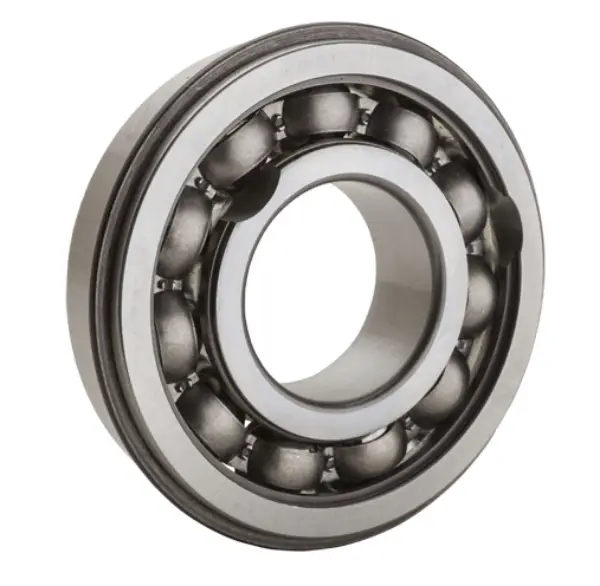

NTN BL312NR
Single Row Radial Ball Bearings
(BRAND)：NTN
(Availability)：In Stock
Technical Specifications
Type
Deep Groove Ball Bearing
Bore Type
Round
Material
High Carbon Chrome Steel
Cage Type
Pressed
Cage Material
Steel
Ball Material
Steel
Limiting Speed - Oil
5700 RPM
Limiting Speed - Grease
4800 RPM
Style
Maximum Capacity
Precision
ISO Class 0
Configuration
One
Radial Internal Clearance
CN
Static Load Rating
78320 N
Dynamic Load Rating
107245 N
Enclosure
Open
Weight
1.720 kg
Operating Temperature Range
-40 to 120 ºC

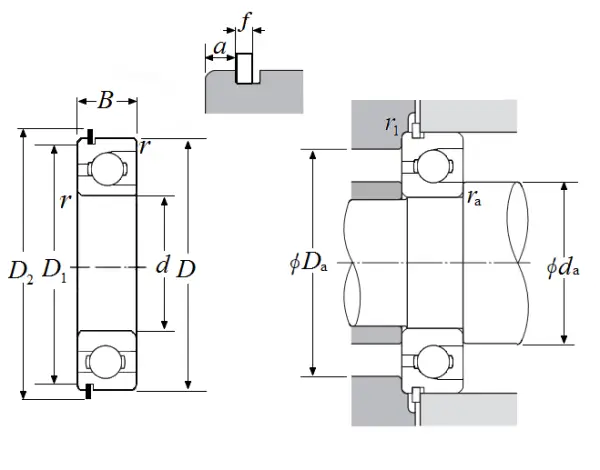

Dimensional Specifications
d
60.000 mm
D
130.000 mm
B
31.000 mm
D1
125.220 mm
D2
139.700 mm
a
4.060 mm
f
2.820 mm
r
2.100 mm
r1
0.500 mm
da min
71.000 mm
da max
80.500 mm
Da max
80.500 mm
ras max
2.000 mm
