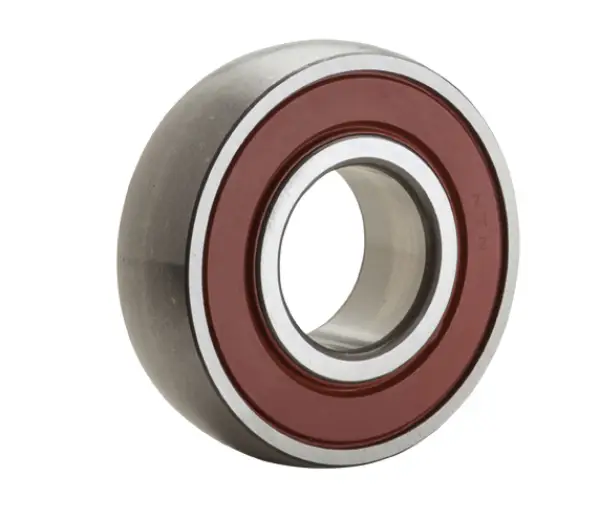

NTN CS206LLU
Tight Fit Type Ball Bearings
(BRAND)：NTN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Technical Specifications
Type
Deep Groove Ball Bearing
Bore Type
Round
Material
Through Hardened Steel
Cage Type
Pressed
Cage Material
Steel
Seal Type
Contact
Seal Material
Nitrile Rubber
Outside Ring Type
Spherical
Ball Material
Steel
Precision
Not Available
Configuration
One
Radial Internal Clearance
CN
Static Load Rating
10300 N
Dynamic Load Rating
19500 N
Enclosure
Double Sealed
Weight
0.970 kg
Operating Temperature Range
-40 to 120 ºC

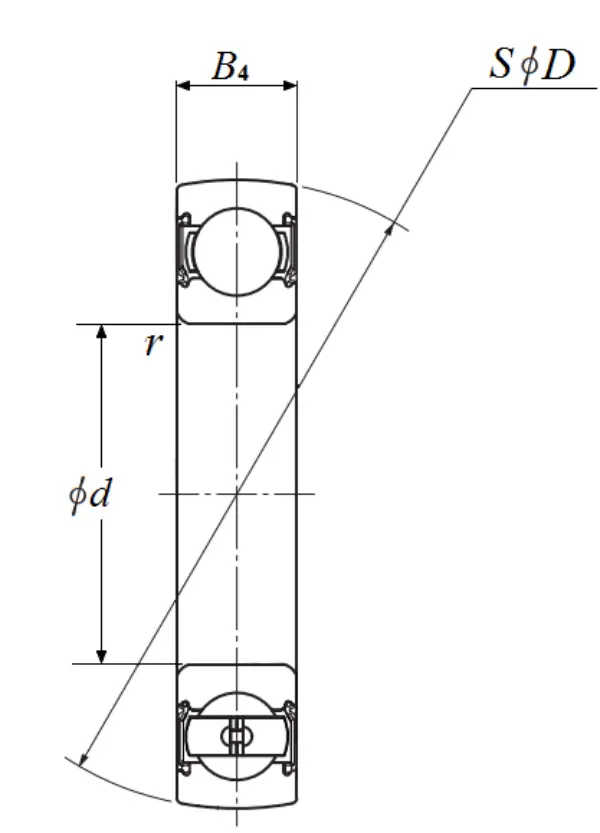

Dimensional Specifications
d
30.000 mm
D
62.000 mm
r
1.000 mm
Specifications
Radial Dynamic Load Rating
19500 N
Radial Static Load Rating
10300 N
