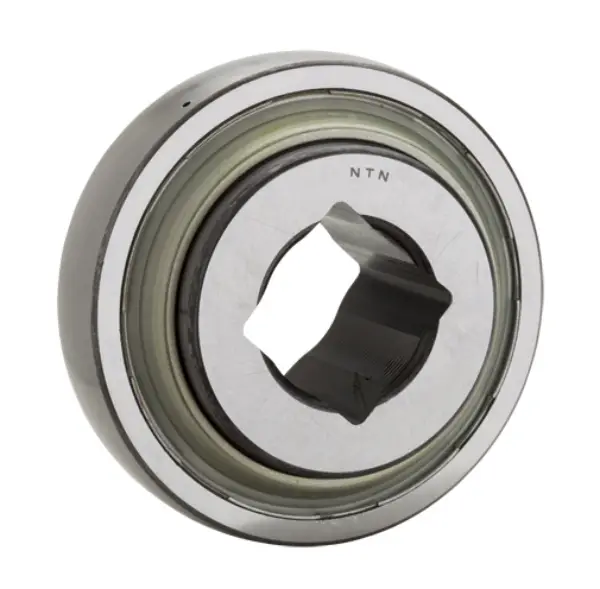

NTN DC216TTR2
Farm Implement Square Bore Bearings - Cylindrical O.D.
(BRAND)：NTN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Technical Specifications
Type
Heavy Duty Disc Bearing
Bore Type
Square
Outside Ring Type
Cylindrical
Material
Through Hardened Steel
Cage Type
Pressed
Cage Material
Steel
Ball Material
Steel
Seal Type
Contact
Seal Material
Nitrile Rubber
Precision
Not Available
Configuration
One
Radial Internal Clearance
CN
Static Load Rating
53000 N
Dynamic Load Rating
72500 N
Enclosure
Double Sealed
Weight
14.860 kg
Operating Temperature Range
-40 to 120 ºC

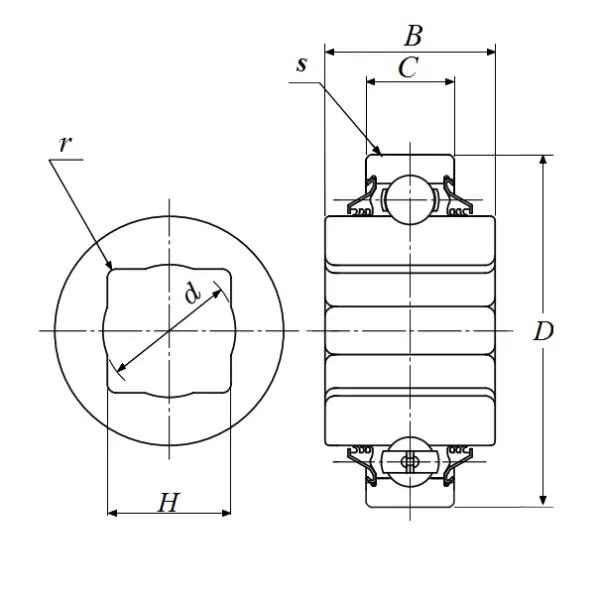

Dimensional Specifications
H
58.725 mm
D
140.000 mm
d
62.6 mm
r
2.000 mm
Shaft Size
57.15 mm
Specifications
Ball Material
Through Hardened
Radial Dynamic Load Rating
72500 N
Radial Static Load Rating
53000 N
