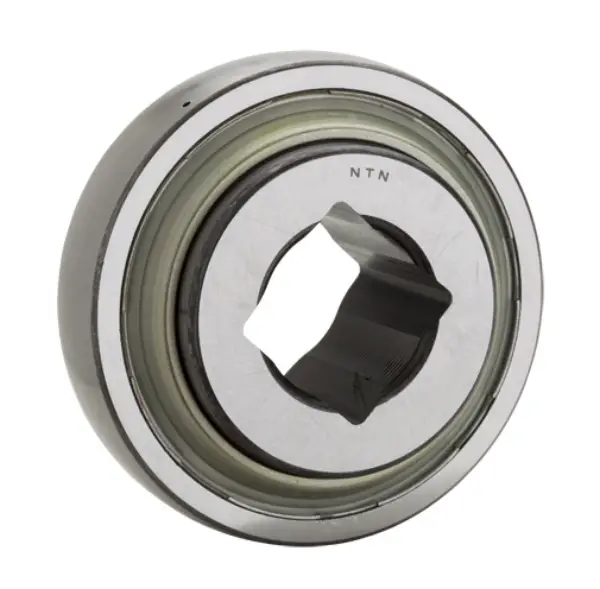

NTN DS208TT11
Farm Implement Square Bore Bearings - Spherical O.D.
(BRAND)：NTN
(Availability)：In Stock
Technical Specifications
Type
Heavy Duty Disc Bearing
Bore Type
Square
Outside Ring Type
Spherical
Material
Through Hardened Steel
Cage Type
Pressed
Cage Material
Steel
Ball Material
Steel
Seal Type
Contact
Seal Material
Nitrile Rubber
Precision
ISO Class 0
Configuration
One
Radial Internal Clearance
C3
Lubrication
No
Static Load Rating
17850 N
Dynamic Load Rating
29100 N
Enclosure
Double Sealed
Weight
10.790 kg
Operating Temperature Range
-40 to 120 ºC

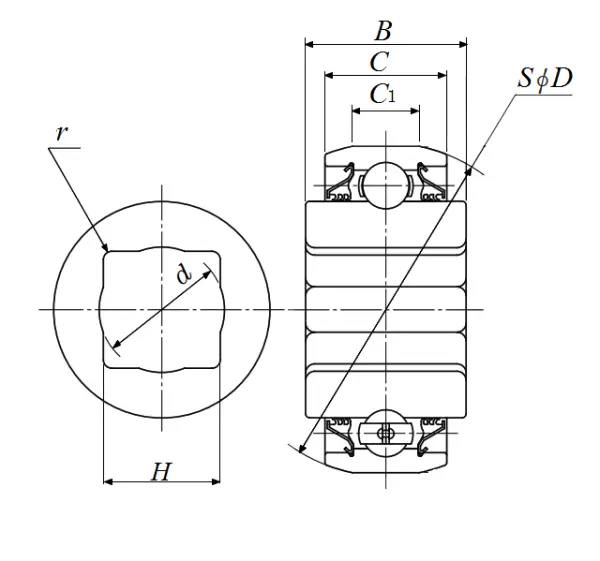

Dimensional Specifications
H
22.987 mm
D
85.725 mm
C
1.188 mm
B
1.438 mm
d
23.8 mm
H - Tolerance
0.005/-0.005 mm
C - Tolerance
0/-0.005 mm
B - Tolerance
0/-0.120 mm
Shaft Size
22.225 mm
Specifications
Ball Material
Through Hardened
Radial Dynamic Load Rating
29100 N
Lubrication
No
Radial Static Load Rating
17850 N
