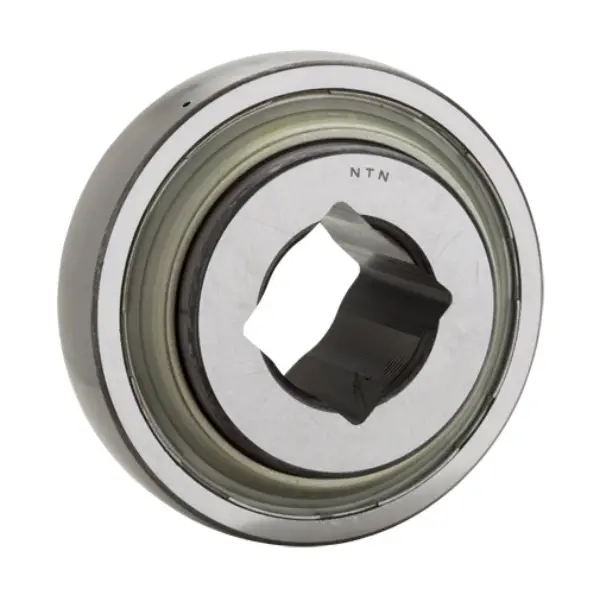

NTN DS208TTR5
Farm Implement Square Bore Bearings - Spherical O.D.
(BRAND)：NTN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Technical Specifications
Type
Heavy Duty Disc Bearing
Bore Type
Square
Outside Ring Type
Spherical
Material
Through Hardened Steel
Cage Type
Pressed
Cage Material
Steel
Ball Material
Steel
Seal Type
Contact
Seal Material
Nitrile Rubber
Precision
Not Available
Configuration
One
Radial Internal Clearance
C3
Static Load Rating
17800 N
Dynamic Load Rating
29100 N
Enclosure
Double Sealed
Weight
3.160 kg
Operating Temperature Range
-40 to 120 ºC

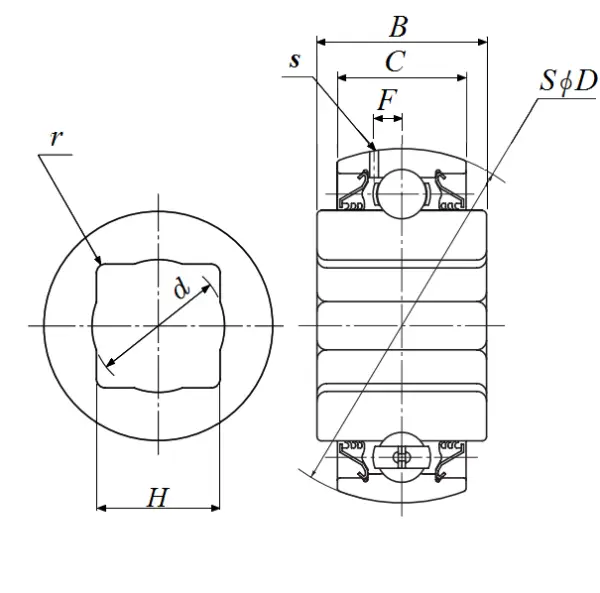

Dimensional Specifications
H
29.972 mm
D
80.000 mm
d
31.4 mm
F
4.45 mm
s
1.6 mm
D - Tolerance
0/-0.013 mm
H - Tolerance
0.127/-0.127 mm
C - Tolerance
0/-0.120 mm
B - Tolerance
0/-0.120 mm
Shaft Size
28.575 mm
Specifications
Ball Material
Through Hardened
Radial Dynamic Load Rating
29100 N
Radial Static Load Rating
17800 N
