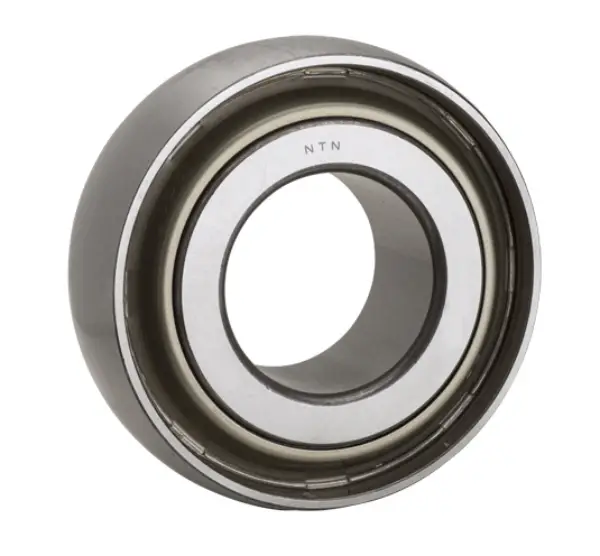

NTN DS209TT2
Farm Implement Round Bore Bearings - Spherical O.D.
(BRAND)：NTN
(Availability)：In Stock
Technical Specifications
Type
Radial Ball Bearing
Bore Type
Round
Outside Ring Type
Spherical
Material
Through Hardened Steel
Cage Type
Pressed
Cage Material
Steel
Ball Material
Steel
Seal Type
Contact
Seal Material
Nitrile Rubber
Precision
Class 0
Configuration
One
Radial Internal Clearance
C3
Static Load Rating
20400 N
Dynamic Load Rating
32500 N
Enclosure
Double Sealed
Weight
0.590 kg
Operating Temperature Range
-40 to 120 ºC

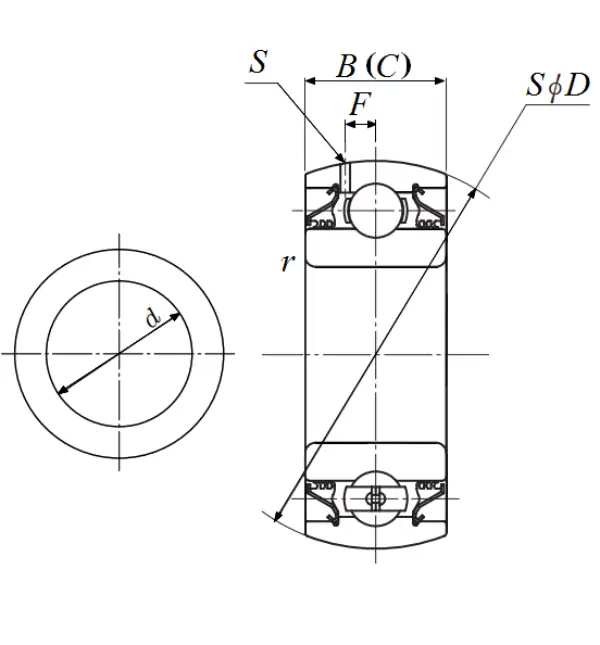

Dimensional Specifications
d
45.000 mm
D
85.000 mm
C
30.200 mm
B
30.200 mm
r
1.500 mm
