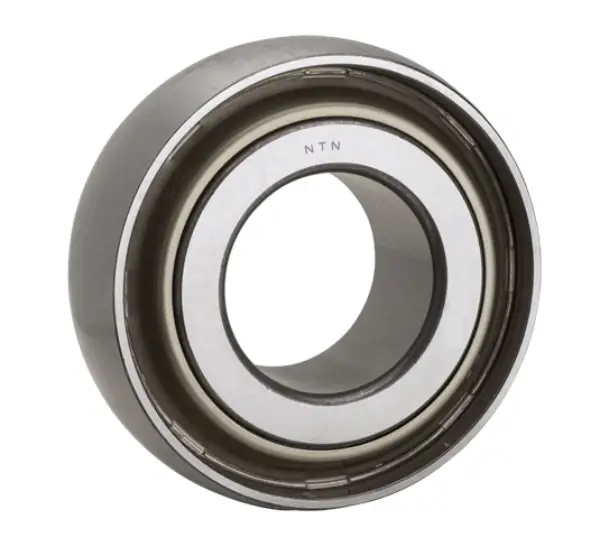

NTN DS209TTR11B
Farm Implement Round Bore Bearings - Spherical O.D.
(BRAND)：NTN
(Availability)：In Stock
Technical Specifications
Type
Radial Ball Bearing
Bore Type
Round
Outside Ring Type
Spherical
Material
Through Hardened Steel
Cage Type
Pressed
Cage Material
Steel
Ball Material
Steel
Style
Open
Precision
Not Available
Configuration
One
Radial Internal Clearance
CN
Static Load Rating
20400 N
Dynamic Load Rating
32500 N
Enclosure
Double Sealed
Weight
3.600 kg
Operating Temperature Range
-40 to 120 ºC

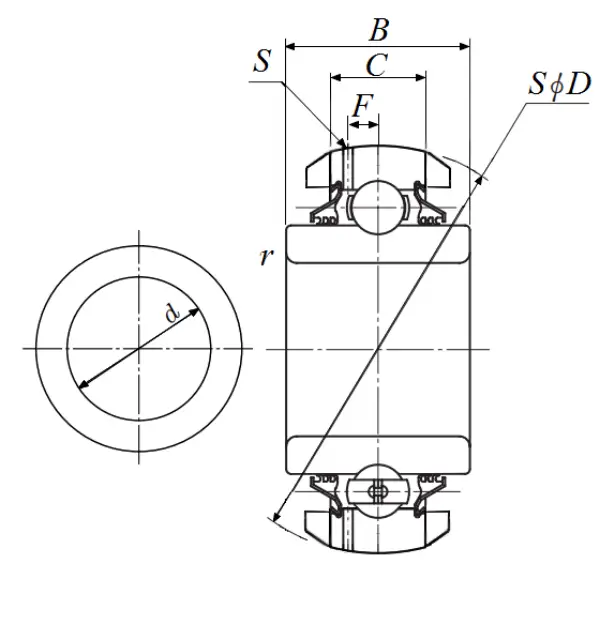

Dimensional Specifications
d
45.000 mm
D
86.233 mm
r
1.000 mm
Specifications
Ball Material
Through Hardened
Radial Dynamic Load Rating
32500 N
Radial Static Load Rating
20400 N
