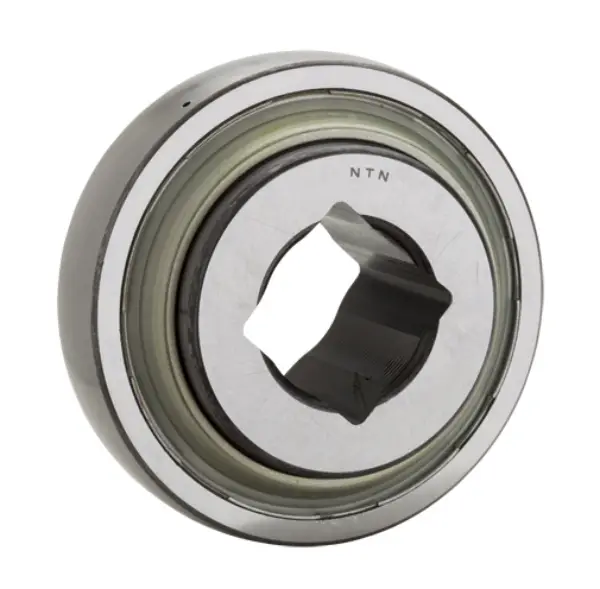

NTN DS209TTR15
Farm Implement Square Bore Bearings - Spherical O.D.
(BRAND)：NTN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Technical Specifications
Type
Heavy Duty Disc Bearing
Bore Type
Square
Outside Ring Type
Spherical
Material
Through Hardened Steel
Cage Type
Pressed
Cage Material
Steel
Ball Material
Steel
Seal Type
Contact
Seal Material
Nitrile Rubber
Precision
Not Available
Configuration
One
Radial Internal Clearance
CN
Static Load Rating
20400 N
Dynamic Load Rating
32500 N
Enclosure
Double Sealed
Weight
4.770 kg
Operating Temperature Range
-40 to 120 ºC

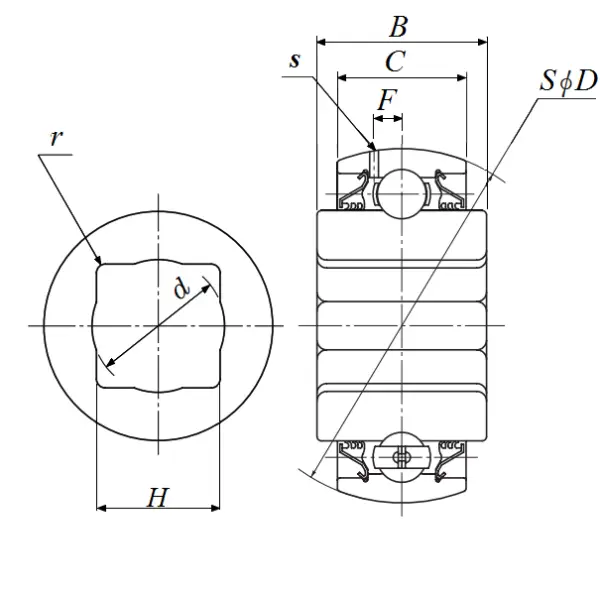

Dimensional Specifications
H
29.972 mm
D
86.258 mm
d
31.4 mm
F
8.500 mm
s
2 mm
D - Tolerance
0/-0.051 mm
H - Tolerance
0.127/-0.127 mm
C - Tolerance
0/-0.120 mm
B - Tolerance
0/-0.120 mm
Shaft Size
31.75 mm
Specifications
Ball Material
Through Hardened
Radial Dynamic Load Rating
32500 N
Radial Static Load Rating
20400 N
