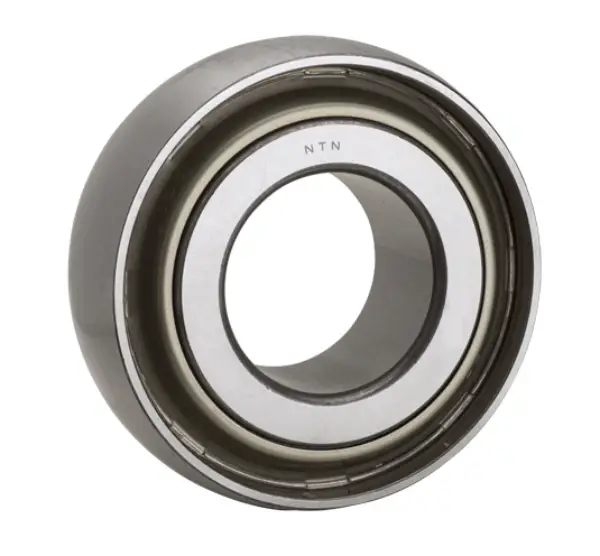

NTN DS209TTR4
Farm Implement Round Bore Bearings - Spherical O.D.
(BRAND)：NTN
(Availability)：In Stock
Technical Specifications
Type
Radial Ball Bearing
Bore Type
Round
Outside Ring Type
Spherical
Material
Through Hardened Steel
Cage Type
Pressed
Cage Material
Steel
Ball Material
Steel
Seal Type
Contact
Seal Material
Nitrile Rubber
Precision
Not Available
Configuration
One
Radial Internal Clearance
CN
Static Load Rating
20400 N
Dynamic Load Rating
32500 N
Enclosure
Double Sealed
Weight
3.490 kg
Operating Temperature Range
-40 to 120 ºC
Dimensional Specifications
d
38.989 mm
D
85.000 mm
B
26.000 mm
r
1.500 mm
F
6.700 mm
s
2.2 mm
Specifications
Ball Material
Through Hardened
Radial Dynamic Load Rating
32500 N
Radial Static Load Rating
20400 N
