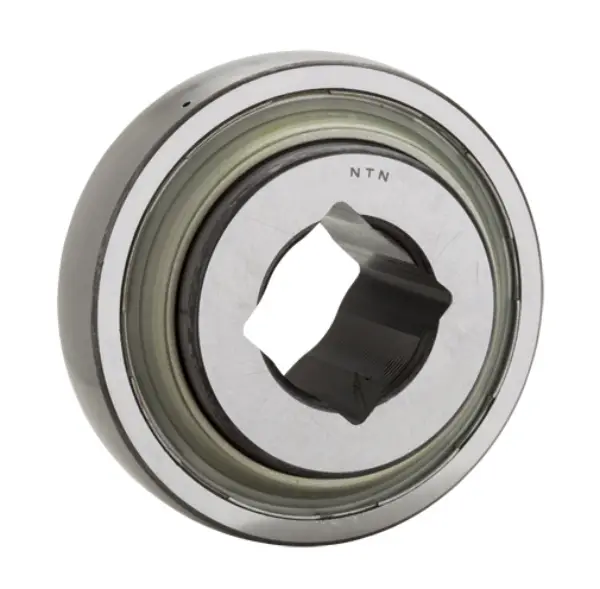

NTN DS209TTR8
Farm Implement Square Bore Bearings - Spherical O.D.
(BRAND)：NTN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Technical Specifications
Type
Heavy Duty Disc Bearing
Bore Type
Square
Outside Ring Type
Spherical
Material
Through Hardened Steel
Cage Type
Pressed
Cage Material
Steel
Ball Material
Steel
Seal Type
Contact
Seal Material
Nitrile Rubber
Precision
Not Available
Configuration
One
Radial Internal Clearance
C3
Static Load Rating
20400 N
Dynamic Load Rating
32500 N
Enclosure
Double Sealed
Weight
3.310 kg
Operating Temperature Range
-40 to 120 ºC

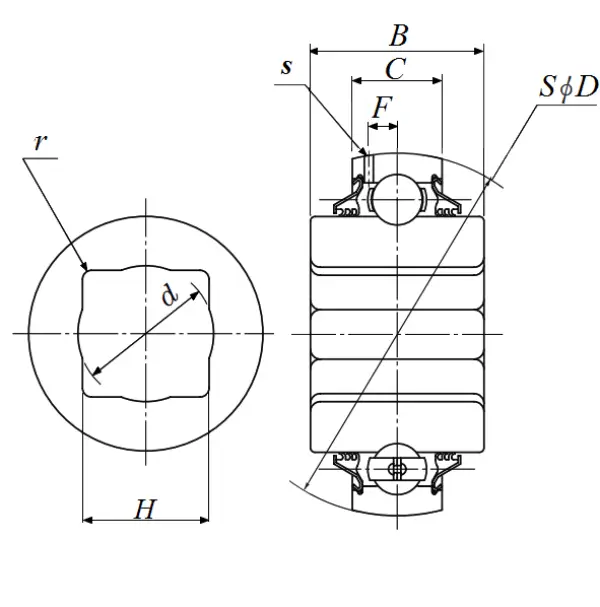

Dimensional Specifications
H
33.020 mm
D
85.000 mm
d
35 mm
F
5.05 mm
s
1.6 mm
D - Tolerance
0/-0.015 mm
H - Tolerance
0.127/-0.127 mm
C - Tolerance
0/-0.127 mm
B - Tolerance
0/-0.120 mm
Shaft Size
31.75 mm
Specifications
Ball Material
Through Hardened
Radial Dynamic Load Rating
32500 N
Radial Static Load Rating
20400 N
