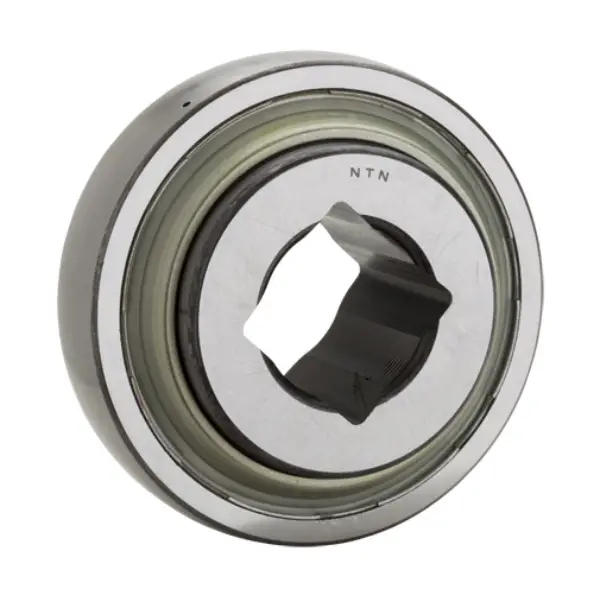

NTN DS210TTR5
Farm Implement Square Bore Bearings - Spherical O.D.
(BRAND)：NTN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Technical Specifications
Type
Heavy Duty Disc Bearing
Bore Type
Square
Outside Ring Type
Spherical
Material
Through Hardened Steel
Cage Type
Pressed
Cage Material
Steel
Ball Material
Steel
Seal Type
Contact
Seal Material
Nitrile Rubber
Precision
Not Available
Configuration
One
Radial Internal Clearance
CN
Enclosure
Double Sealed
Weight
29.310 kg
Operating Temperature Range
-40 to 120 ºC

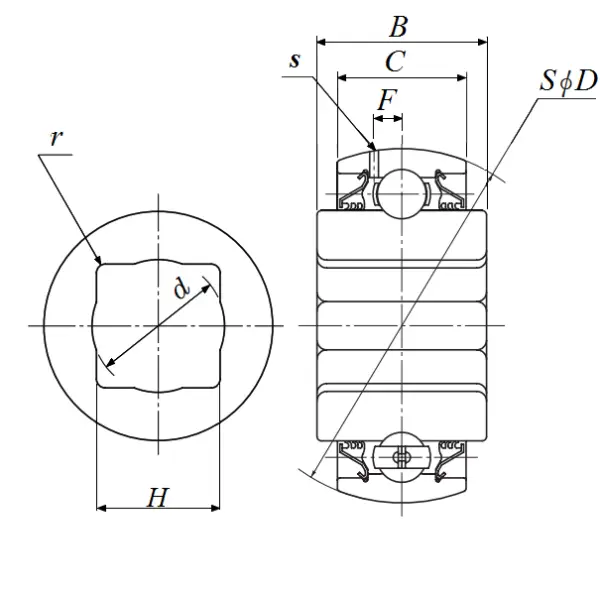

Dimensional Specifications
H
45.339 mm
D
90.000 mm
D - Tolerance
0/-0.015 mm
H - Tolerance
0.005/-0.005 mm
C - Tolerance
0/-0.005 mm
B - Tolerance
0/-0.005 mm
Shaft Size
28.575 mm
Specifications
Ball Material
Through Hardened
