NTN DS211TT2
Farm Implement Round Bore Bearings - Spherical O.D.
(BRAND)：NTN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Technical Specifications
Type
Radial Ball Bearing
Bore Type
Round
Outside Ring Type
Spherical
Material
Through Hardened Steel
Cage Type
Pressed
Cage Material
Steel
Ball Material
Steel
Seal Type
Contact
Seal Material
Nitrile Rubber
Precision
Not Available
Configuration
One
Radial Internal Clearance
CN
Static Load Rating
29200 N
Dynamic Load Rating
43500 N
Enclosure
Double Sealed
Weight
4.230 kg
Operating Temperature Range
-40 to 120 ºC

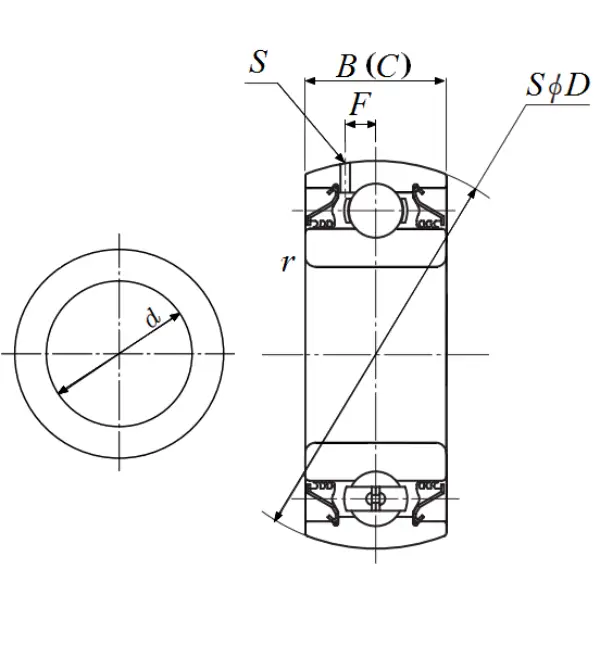

Dimensional Specifications
d
55.575 mm
D
100.000 mm
r
2.000 mm
Specifications
Ball Material
Through Hardened
Radial Dynamic Load Rating
43500 N
Radial Static Load Rating
29200 N
