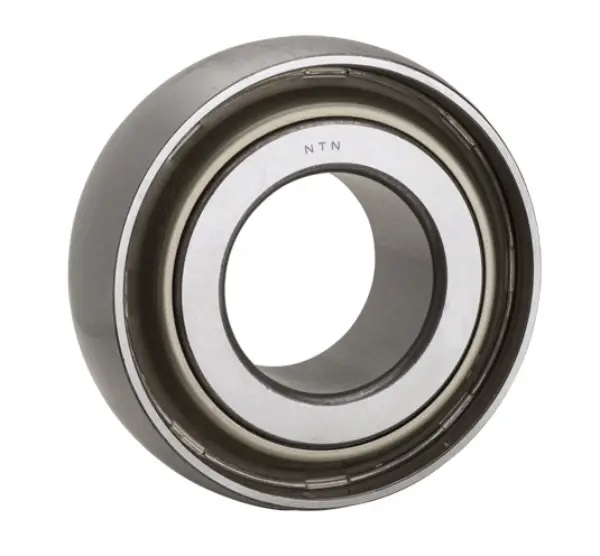

NTN DS211TTR23
Farm Implement Round Bore Bearings - Spherical O.D.
(BRAND)：NTN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Technical Specifications
Type
Radial Ball Bearing
Bore Type
Round
Outside Ring Type
Spherical
Material
Through Hardened Steel
Cage Type
Pressed
Cage Material
Steel
Ball Material
Steel
Seal Type
Contact
Seal Material
Nitrile Rubber
Precision
Not Available
Configuration
One
Lubrication
Outer Ring
Radial Internal Clearance
CN
Static Load Rating
29100 N
Dynamic Load Rating
43400 N
Enclosure
Double Sealed
Weight
7.100 kg
Operating Temperature Range
-40 to 120 ºC

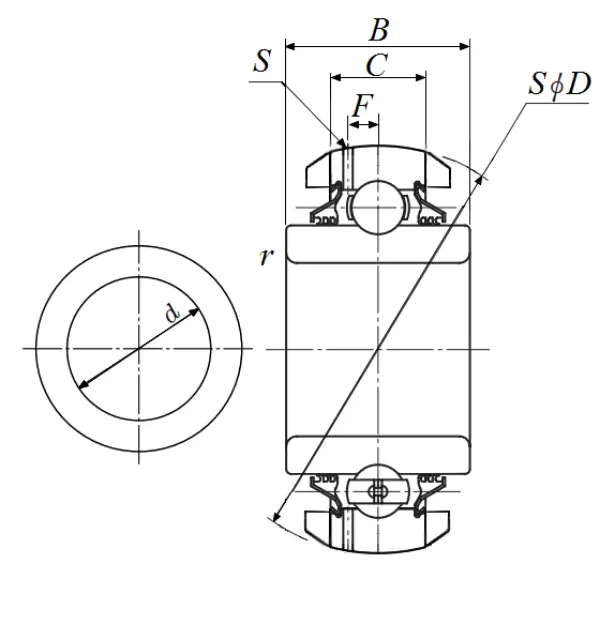

Dimensional Specifications
d
45.212 mm
D
101.067 mm
C
33.909 mm
B
53.975 mm
r
1.500 mm
Specifications
Ball Material
Through Hardened
Radial Dynamic Load Rating
43400 N
Radial Static Load Rating
29100 N
Lubrication
Outer Ring
