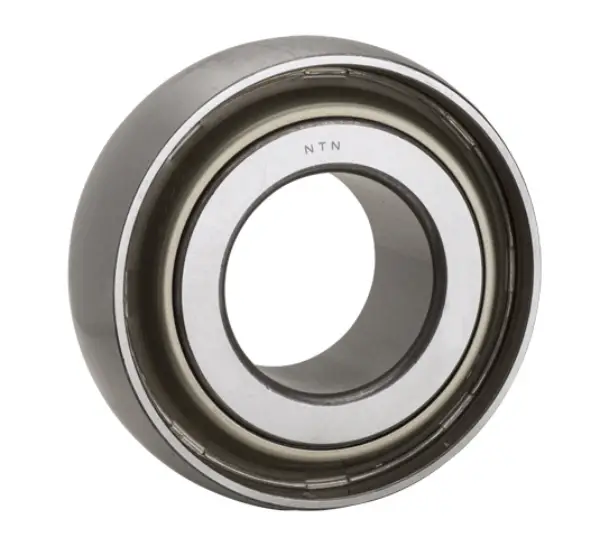

NTN DS214TTR3
Farm Implement Round Bore Bearings - Spherical O.D.
(BRAND)：NTN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Technical Specifications
Type
Radial Ball Bearing
Bore Type
Round
Outside Ring Type
Spherical
Material
Through Hardened Steel
Cage Type
Pressed
Cage Material
Steel
Ball Material
Steel
Seal Type
Contact
Seal Material
Nitrile Rubber
Precision
Class 0
Configuration
One
Radial Internal Clearance
CN
Static Load Rating
44000 N
Dynamic Load Rating
62000 N
Enclosure
Double Sealed
Weight
2.200 kg
Operating Temperature Range
-40 to 120 ºC

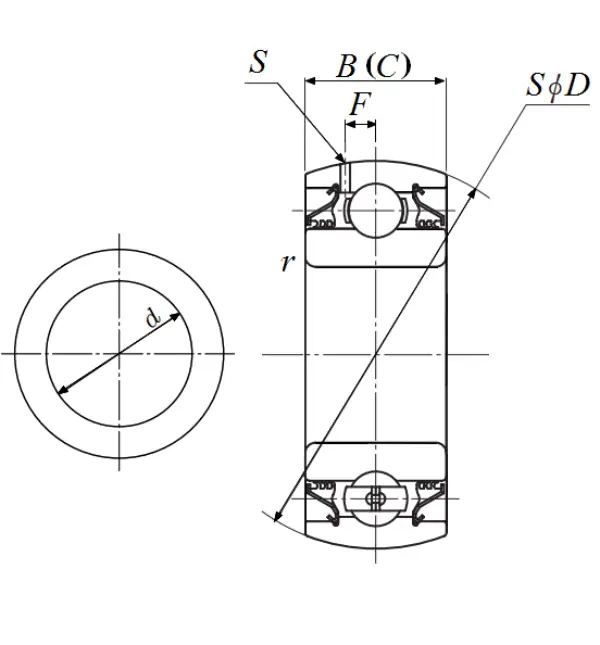

Dimensional Specifications
d
49.225 mm
D
125.000 mm
C
39.690 mm
B
39.690 mm
r
2.000 mm
F
9.400 mm
s
3.000 mm
