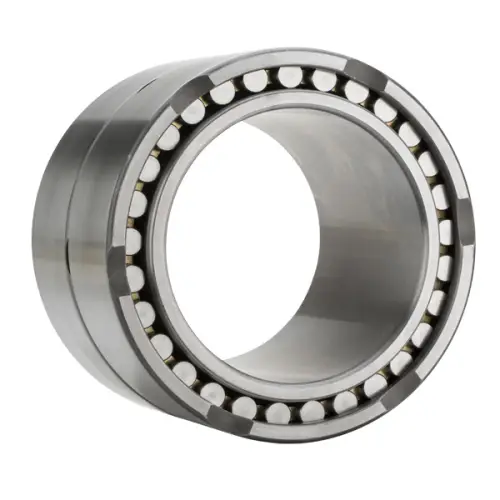

NTN E-4R10008
Quadruple Row Cylindrical Roller Bearings
(BRAND)：NTN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Technical Specifications
Type
Cylindrical Roller Bearing
Bore Type
Round
Material
Case Carburized Steel
Cage Material
Pin Type Cage
Precision
ISO Class 0 (RBEC 1)
Configuration
Four
Tolerance
ISO Class 0 (RBEC 1)
Oil Hole
w/o Oil Hole
Radial Internal Clearance
CN
Static Load Rating
24700000 N
Dynamic Load Rating
8650000 N
Enclosure
Open
Weight
675.000 kg
Operating Temperature Range
-40 to 120 ºC

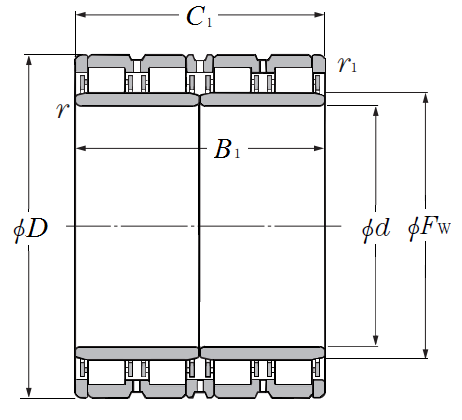

Dimensional Specifications
d
500.000 mm
D
710.000 mm
B1
480.000 mm
C1
480.000 mm
Fw
556.000 mm
r
6.000 mm
r1
6.000 mm
