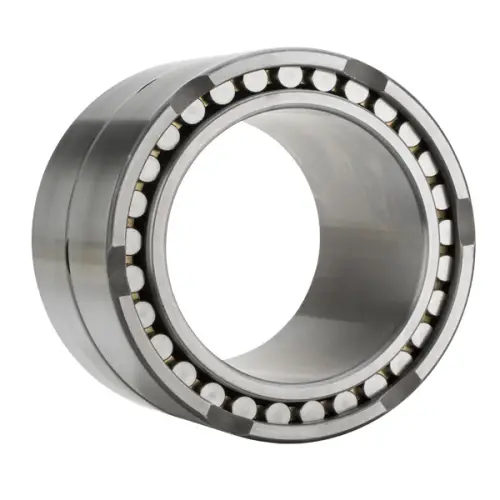

NTN E-4R15001
Quadruple Row Cylindrical Roller Bearings
(BRAND)：NTN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Technical Specifications
Type
Cylindrical Roller Bearing
Bore Type
Round
Material
Case Carburized Steel
Cage Material
Pin Type Cage
Precision
ISO Class 0 (RBEC 1)
Configuration
Four
Tolerance
ISO Class 0 (RBEC 1)
Oil Hole
w/o Oil Hole
Radial Internal Clearance
CN
Static Load Rating
58000000 N
Dynamic Load Rating
17600000 N
Enclosure
Open
Weight
2180.000 kg
Operating Temperature Range
-40 to 120 ºC

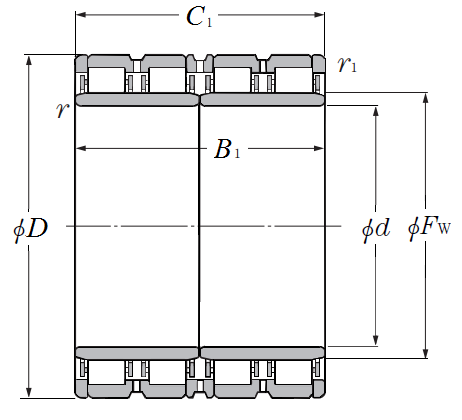

Dimensional Specifications
d
750.000 mm
D
1050.000 mm
B1
745.000 mm
C1
720.000 mm
Fw
830.000 mm
r
7.500 mm
r1
7.500 mm
