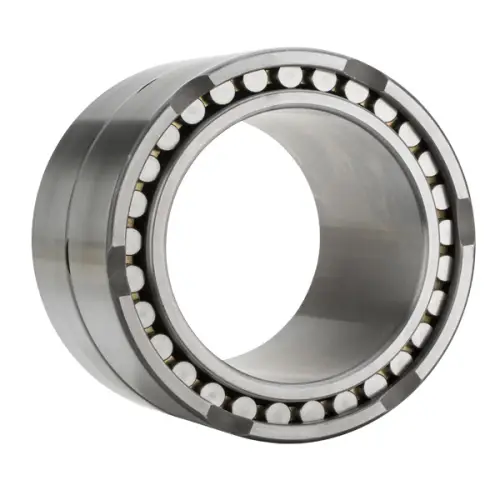

NTN E-4R6804
Quadruple Row Cylindrical Roller Bearings
(BRAND)：NTN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Technical Specifications
Type
Cylindrical Roller Bearing
Bore Type
Round
Material
Case Carburized Steel
Cage Material
Machined Steel
Precision
ISO Class 0 (RBEC 1)
Configuration
Four
Oil Hole
w/o Oil Hole
Radial Internal Clearance
CN
Static Load Rating
8300000 N
Dynamic Load Rating
3350000 N
Enclosure
Open
Weight
187.000 kg
Operating Temperature Range
-40 to 120 ºC

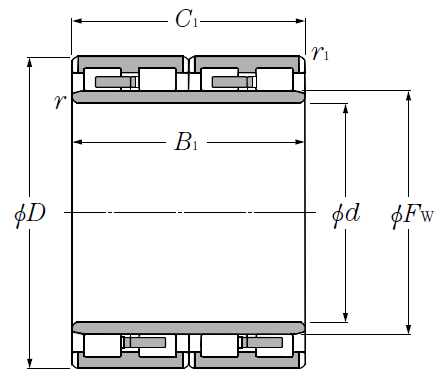

Dimensional Specifications
d
340.000 mm
D
490.000 mm
B1
300.000 mm
C1
300.000 mm
Fw
377.000 mm
r
4.000 mm
r1
4.000 mm
