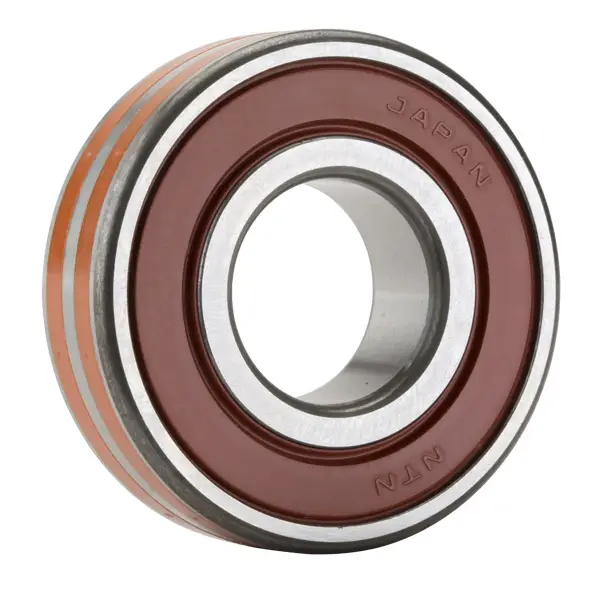

NTN EC-6000LLUACS25
Expansion Compensating Bearings
(BRAND)：NTN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Technical Specifications
Type
Expansion Compensating Bearing
Bore Type
Round
Material
High Carbon Chrome Steel
Cage Type
Pressed
Cage Material
Steel
Ball Material
Steel
Limiting Speed - Oil
34000 RPM
Limiting Speed - Grease
21000 RPM
Seal Type
Contact
Seal Material
Polyacrylic Seal
Precision
Special Tolerance
Configuration
One
Factor
12.4
Radial Internal Clearance
Special Clearance
Static Load Rating
1960 N
Dynamic Load Rating
5050 N
Enclosure
Double Sealed
Weight
0.018 kg
Operating Temperature Range
-40 to 120 ºC

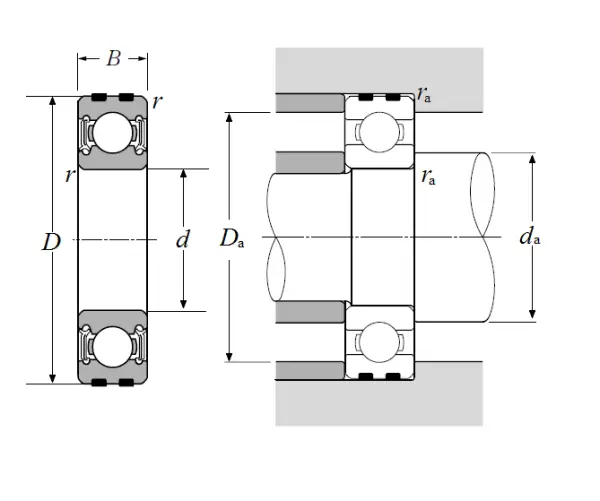

Dimensional Specifications
d
10.000 mm
D
26.000 mm
B
8.000 mm
r
0.300 mm
da min
12.000 mm
da max
13.5 mm
Da max
24 mm
ras max
0.000 mm
