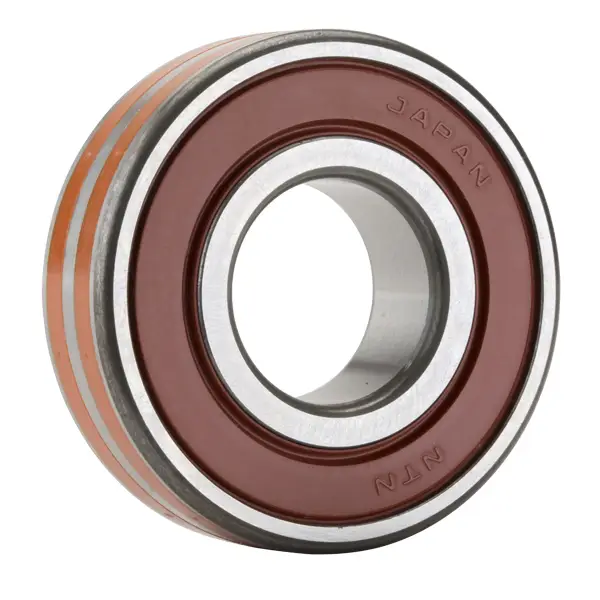

NTN EC-6206LLUC3
Expansion Compensating Bearings
(BRAND)：NTN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Technical Specifications
Type
Expansion Compensating Bearing
Bore Type
Round
Material
High Carbon Chrome Steel
Cage Type
Pressed
Cage Material
Steel
Ball Material
Steel
Limiting Speed - Oil
13000 RPM
Limiting Speed - Grease
7300 RPM
Seal Type
Contact
Seal Material
Nitrile Rubber
Precision
Class 0
Configuration
One
Factor
13.8
Radial Internal Clearance
C3
Static Load Rating
11300 N
Dynamic Load Rating
21600 N
Enclosure
Double Sealed
Operating Temperature Range
-40 to 120 ºC

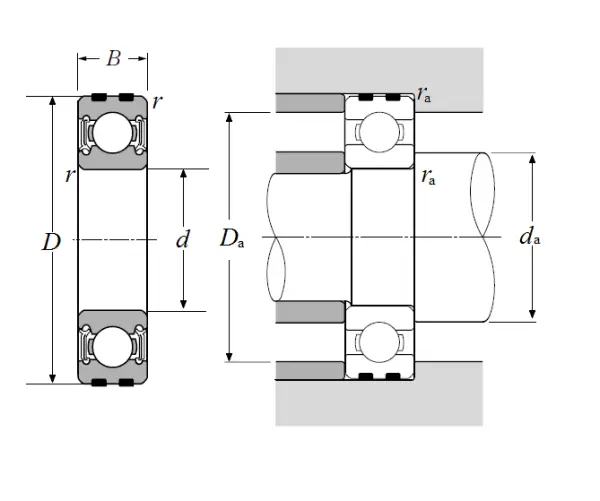

Dimensional Specifications
d
30.000 mm
D
62.000 mm
B
16.000 mm
r
1.000 mm
da min
35.000 mm
da max
39.000 mm
Da max
57.000 mm
ras max
0.5 mm
