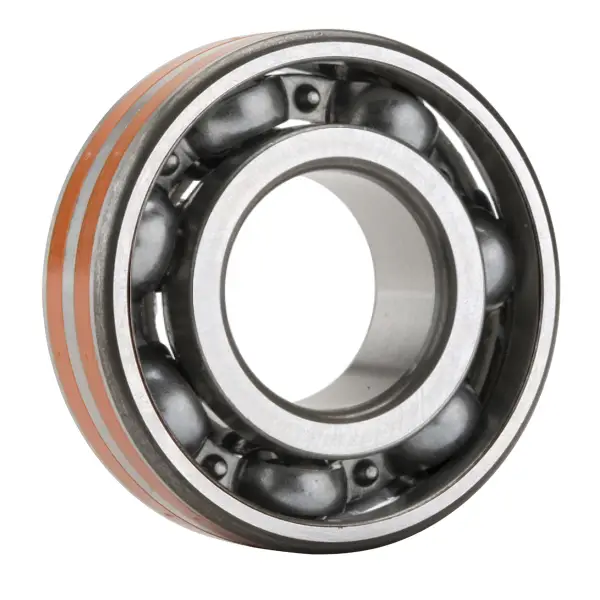

NTN EC-6208
Expansion Compensating Bearings
(BRAND)：NTN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Technical Specifications
Type
Expansion Compensating Bearing
Bore Type
Round
Material
High Carbon Chrome Steel
Cage Type
Pressed
Cage Material
Steel
Ball Material
Steel
Limiting Speed - Oil
10000 RPM
Limiting Speed - Grease
8700 RPM
Precision
ISO Class 0
Configuration
One
Factor
14.0
Radial Internal Clearance
CN
Static Load Rating
17800 N
Dynamic Load Rating
32500 N
Enclosure
Open
Operating Temperature Range
-40 to 120 ºC

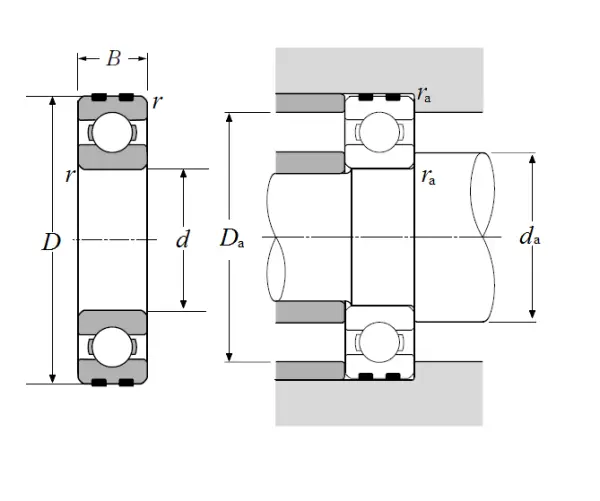

Dimensional Specifications
d
40.000 mm
D
80.000 mm
B
18.000 mm
r
1.100 mm
da min
46.500 mm
da max
51.000 mm
Da max
73.500 mm
ras max
0.300 mm
