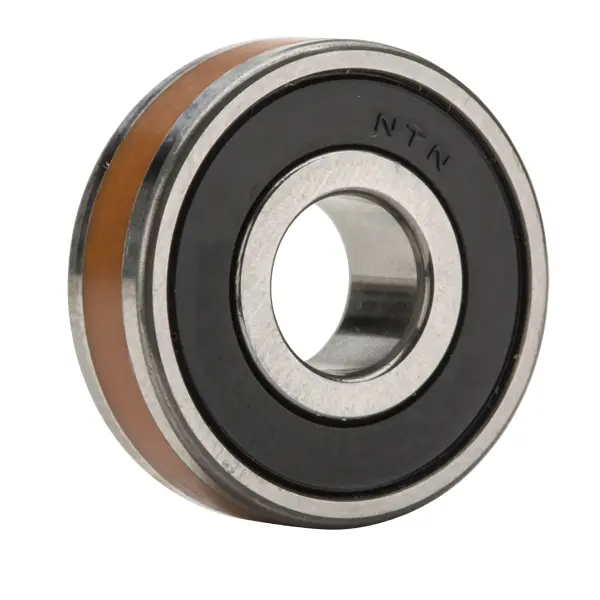

NTN EC-6210LLBC3
Expansion Compensating Bearings
(BRAND)：NTN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Technical Specifications
Type
Expansion Compensating Bearing
Bore Type
Round
Material
High Carbon Chrome Steel
Cage Type
Pressed
Cage Material
Steel
Ball Material
Steel
Limiting Speed - Oil
8300 RPM
Limiting Speed - Grease
7100 RPM
Seal Type
Non-Contact
Seal Material
Nitrile Rubber
Precision
Class 0
Configuration
One
Factor
14.4
Radial Internal Clearance
C3
Static Load Rating
23200 N
Dynamic Load Rating
39000 N
Enclosure
Double Sealed
Operating Temperature Range
-40 to 120 ºC

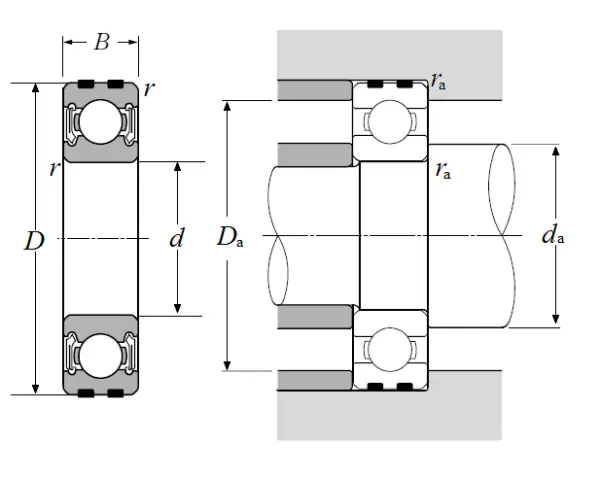

Dimensional Specifications
d
50.000 mm
D
90.000 mm
B
20.000 mm
r
1.100 mm
da min
56.500 mm
da max
60.000 mm
Da max
83.500 mm
ras max
0.5 mm
