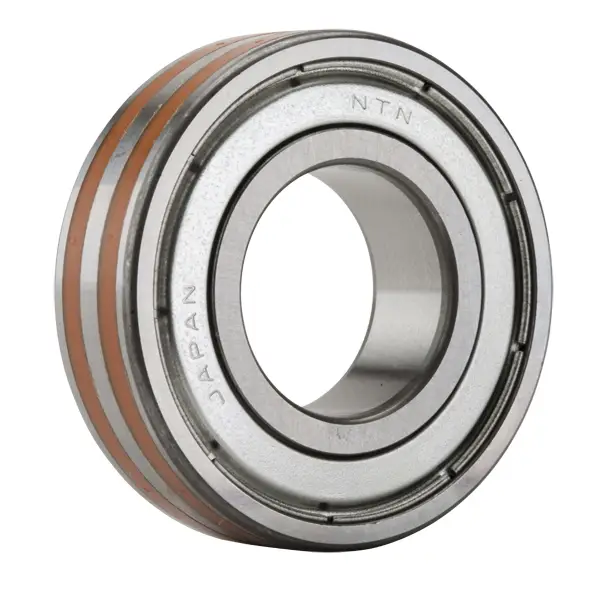

NTN EC-6302ZZ
Expansion Compensating Bearings
(BRAND)：NTN
(Availability)：In Stock
Technical Specifications
Type
Expansion Compensating Bearing
Bore Type
Round
Material
High Carbon Chrome Steel
Cage Type
Pressed
Cage Material
Steel
Ball Material
Steel
Limiting Speed - Oil
21000 RPM
Limiting Speed - Grease
17000 RPM
Seal Type
None
Seal Material
None
Precision
Class 0
Configuration
One
Factor
12.3
Radial Internal Clearance
CN
Static Load Rating
5450 N
Dynamic Load Rating
12700 N
Enclosure
Double Shielded
Operating Temperature Range
-40 to 120 ºC

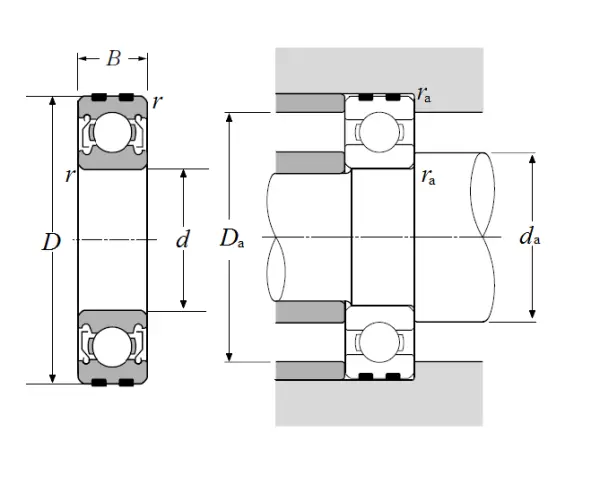

Dimensional Specifications
d
15.000 mm
D
42.000 mm
B
13.000 mm
r
1.000 mm
da min
20.000 mm
da max
23.000 mm
Da max
37.000 mm
ras max
0.5 mm
