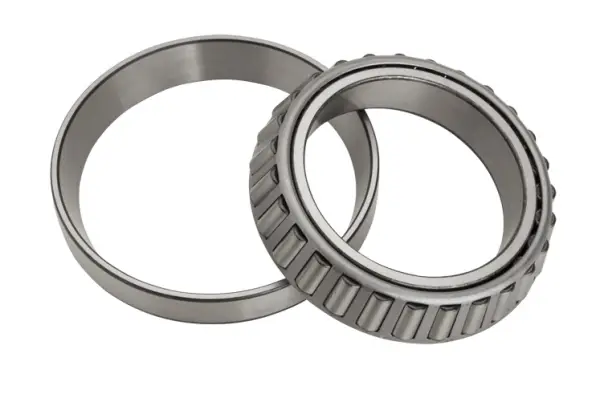

NTN EE234160/234220
Tapered Roller Set - Inch Series and J Series
(BRAND)：NTN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Technical Specifications
Type
Tapered Roller Bearing
Bore Type
Round
Material
Case Carburized Steel
Style
Cone & Cup
Precision Rating
Class 4
Cone Number
EE234160
Cup Number
234220
Configuration
One
Lubrication
w/o Oil Hole
Enclosure
Open
Operating Temperature Range
-40 to 120 ºC

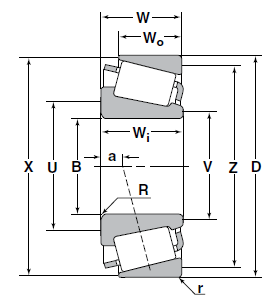

Dimensional Specifications
B
406.400 mm
D
558.800 mm
Wo
44.450 mm
Wi
61.120 mm
W
119.063 mm
r
6.400 mm
R
6.4 mm
a (Effective Load Center)
35.600 mm
