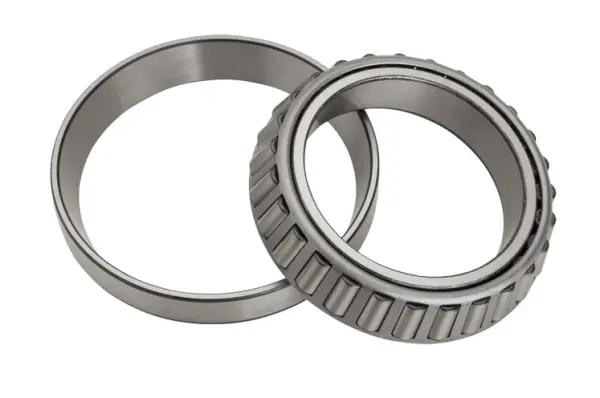

NTN EE724120/724195
Tapered Roller Set - Inch Series and J Series
(BRAND)：NTN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Technical Specifications
Type
Tapered Roller Bearing
Bore Type
Round
Material
Case Carburized Steel
Style
Cone & Cup
Precision Rating
Class 4
Cone Number
EE724120
Cup Number
724195
Configuration
One
Lubrication
w/o Oil Hole
Enclosure
Open
Weight
63.500 kg
Operating Temperature Range
-40 to 120 ºC

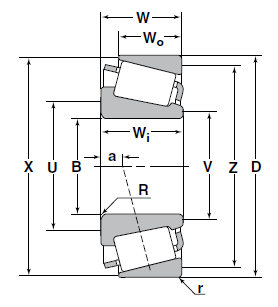

Dimensional Specifications
B
304.800 mm
D
495.300 mm
Wo
69.850 mm
Wi
92.075 mm
W
95.250 mm
r
6.400 mm
R
16.0 mm
a (Effective Load Center)
-0.800 mm
