NTN FL604
Single Row Radial Ball Bearings
(BRAND)：NTN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Technical Specifications
Type
Miniature / Extra Small Ball Bearing
Bore Type
Round
Material
High Carbon Chrome Steel
Cage Type
Pressed
Cage Material
Steel
Limiting Speed - Oil
51000 RPM
Limiting Speed - Grease
43000 RPM
Precision
Class 0
Configuration
One
Factor
12.8
Radial Internal Clearance
CN
Static Load Rating
360 N
Dynamic Load Rating
970 N
Enclosure
Open
Operating Temperature Range
-40 to 120 ºC

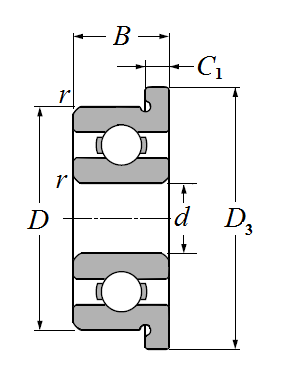

Dimensional Specifications
d
4.000 mm
D
12.000 mm
B
4.000 mm
D3
13.500 mm
C1
1.000 mm
r
0.200 mm
da min
5.600 mm
da max
6.600 mm
Da max
10.400 mm
ras max
0.200 mm
