NTN FL624Z
Single Row Radial Ball Bearings
(BRAND)：NTN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Technical Specifications
Type
Miniature / Extra Small Ball Bearing
Bore Type
Round
Outside Ring Type
Flanged
Material
High Carbon Chrome Steel
Cage Type
Pressed
Cage Material
Steel
Limiting Speed - Oil
49000 RPM
Limiting Speed - Grease
42000 RPM
Configuration
One
Factor
12.4
Static Load Rating
490 N
Dynamic Load Rating
1310 N
Enclosure
Single Shielded
Weight
3.500 kg
Operating Temperature Range
-40 to 120 ºC

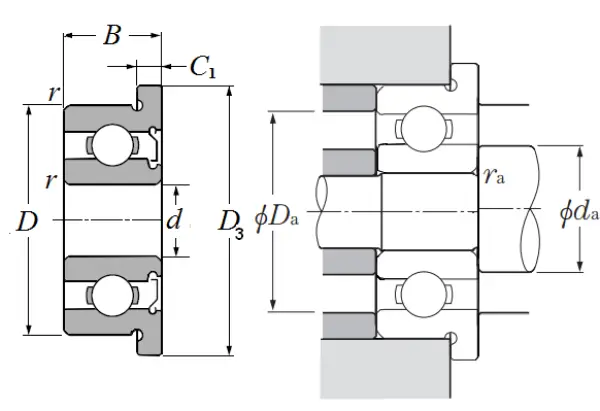

Dimensional Specifications
d
4.000 mm
D
13.000 mm
B
5.000 mm
D3
15.000 mm
C1
1.000 mm
r
0.200 mm
da min
5.600 mm
da max
6.200 mm
Da max
11.400 mm
ras max
0.200 mm
