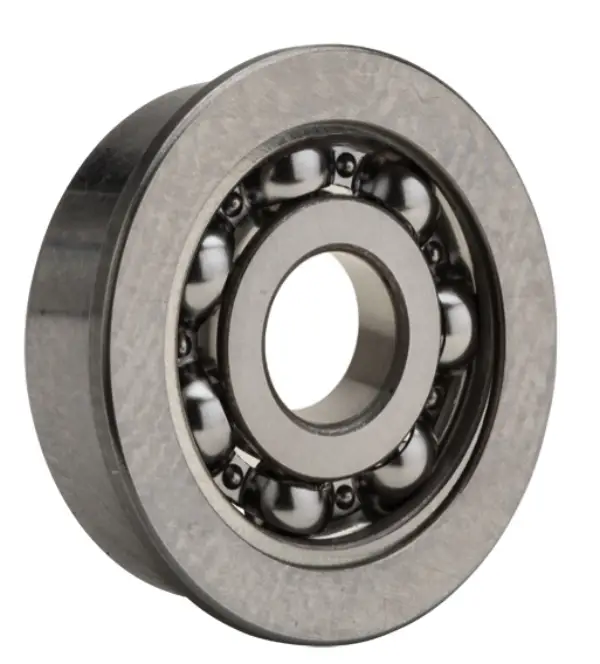

NTN FL625
Single Row Radial Ball Bearings
(BRAND)：NTN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Technical Specifications
Type
Miniature / Extra Small Ball Bearing
Bore Type
Round
Material
High Carbon Chrome Steel
Cage Type
Pressed
Cage Material
Steel
Limiting Speed - Oil
44000 RPM
Limiting Speed - Grease
37000 RPM
Precision
Class 0
Configuration
One
Factor
12.4
Radial Internal Clearance
CN
Static Load Rating
680 N
Dynamic Load Rating
1760 N
Enclosure
Open
Operating Temperature Range
-40 to 120 ºC
Dimensional Specifications
d
5.000 mm
D
16.000 mm
B
5.000 mm
D3
18.000 mm
C1
1.000 mm
r
0.300 mm
da min
7.000 mm
da max
7.600 mm
Da max
14.000 mm
ras max
0.300 mm
