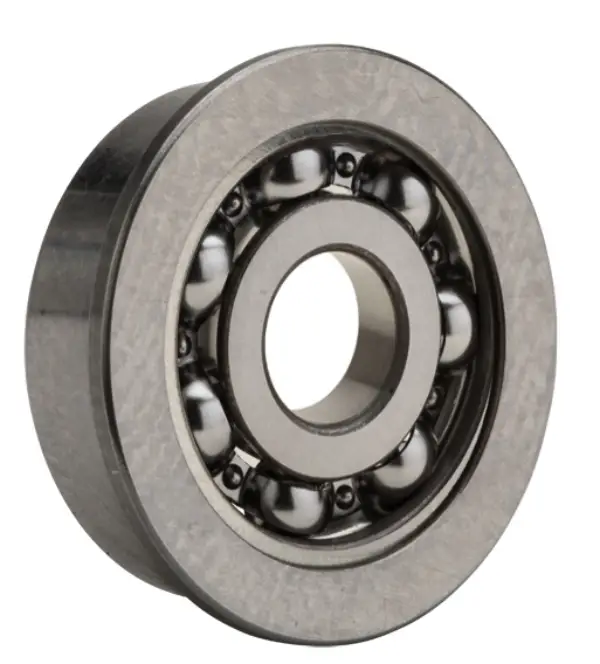

NTN FL683
Single Row Radial Ball Bearings
(BRAND)：NTN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Technical Specifications
Type
Miniature / Extra Small Ball Bearing
Bore Type
Round
Material
High Carbon Chrome Steel
Cage Type
Pressed
Cage Material
Steel
Limiting Speed - Oil
68000 RPM
Limiting Speed - Grease
58000 RPM
Precision
Class 0
Configuration
One
Factor
13.0
Radial Internal Clearance
CN
Static Load Rating
130 N
Dynamic Load Rating
390 N
Enclosure
Open
Operating Temperature Range
-40 to 120 ºC

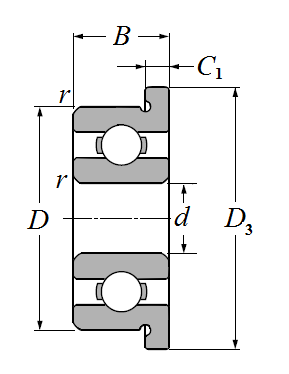

Dimensional Specifications
d
3.000 mm
D
7.000 mm
B
2.000 mm
D3
8.100 mm
C1
0.500 mm
r
0.100 mm
da min
3.900 mm
da max
4.100 mm
Da max
5.800 mm
ras max
0.100 mm
