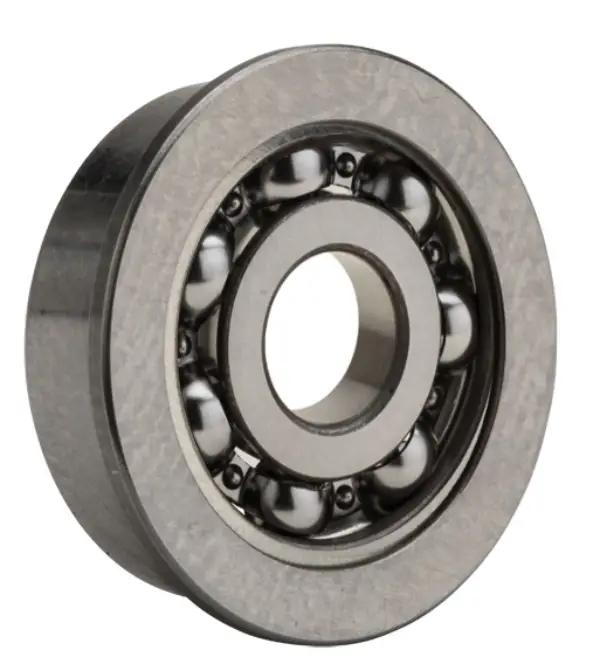

NTN FL697
Single Row Radial Ball Bearings
(BRAND)：NTN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Technical Specifications
Type
Miniature / Extra Small Ball Bearing
Bore Type
Round
Material
High Carbon Chrome Steel
Cage Type
Pressed
Cage Material
Steel
Limiting Speed - Oil
41000 RPM
Limiting Speed - Grease
35000 RPM
Precision
Class 0
Configuration
One
Factor
14.0
Radial Internal Clearance
CN
Static Load Rating
715 N
Dynamic Load Rating
1610 N
Enclosure
Open
Operating Temperature Range
-40 to 120 ºC

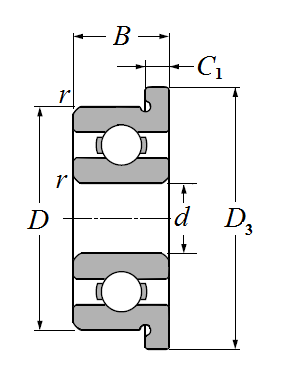

Dimensional Specifications
d
7.000 mm
D
17.000 mm
B
5.000 mm
D3
19.000 mm
C1
1.200 mm
r
0.300 mm
da min
9.000 mm
da max
10.000 mm
Da max
15.000 mm
ras max
0.300 mm
