NTN FLAWBC3-9ZZA
Single Row Radial Ball Bearings
(BRAND)：NTN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Technical Specifications
Type
Miniature / Extra Small Ball Bearing
Bore Type
Round
Material
High Carbon Chrome Steel
Cage Type
Stainless (Snap Type)
Cage Material
Steel
Limiting Speed - Grease
50000 RPM
Precision
Class 0
Configuration
One
Factor
12.4
Radial Internal Clearance
CN
Static Load Rating
219 N
Dynamic Load Rating
635 N
Enclosure
Removable Double Shield
Operating Temperature Range
-40 to 120 ºC

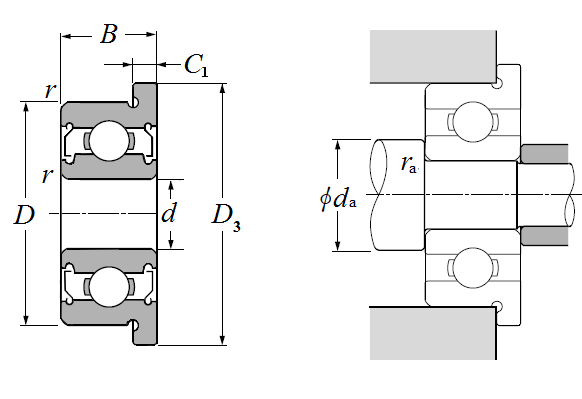

Dimensional Specifications
d
3.000 mm
D
9.000 mm
B
4.000 mm
D3
10.600 mm
C1
0.800 mm
r
0.150 mm
da min
4.200 mm
da max
5.000 mm
Da max
7.800 mm
ras max
0.150 mm
