NTN FLAWBC4-10Z
Single Row Radial Ball Bearings
(BRAND)：NTN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Technical Specifications
Type
Miniature / Extra Small Ball Bearing
Bore Type
Round
Outside Ring Type
Flanged
Material
High Carbon Chrome Steel
Cage Type
Stainless (Crown Type)
Cage Material
Steel
Limiting Speed - Oil
55000 RPM
Limiting Speed - Grease
46000 RPM
Configuration
One
Factor
13.3
Static Load Rating
235 N
Dynamic Load Rating
650 N
Enclosure
Single Shielded
Weight
1.100 kg
Operating Temperature Range
-40 to 120 ºC

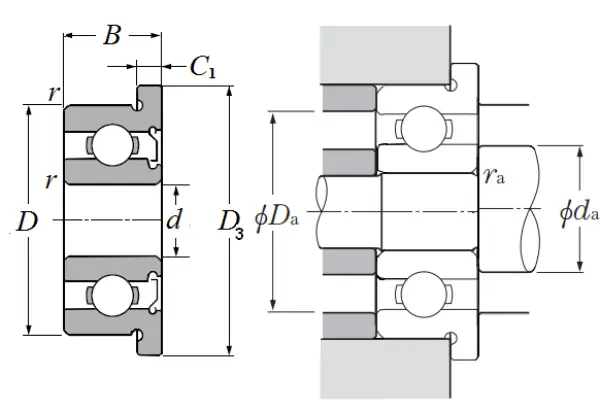

Dimensional Specifications
d
4.000 mm
D
10.000 mm
B
4.000 mm
D3
11.600 mm
C1
0.800 mm
r
0.150 mm
da min
5.200 mm
da max
6.000 mm
Da max
8.800 mm
ras max
0.150 mm
