NTN FLAWBC7-13ZZ
Single Row Radial Ball Bearings
(BRAND)：NTN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Technical Specifications
Type
Miniature / Extra Small Ball Bearing
Bore Type
Round
Material
High Carbon Chrome Steel
Cage Type
Stainless (Crown Type)
Cage Material
Steel
Limiting Speed - Grease
38000 RPM
Precision
Class 0
Configuration
One
Factor
14.9
Radial Internal Clearance
CN
Static Load Rating
375 N
Dynamic Load Rating
825 N
Enclosure
Double Shielded
Operating Temperature Range
-40 to 120 ºC

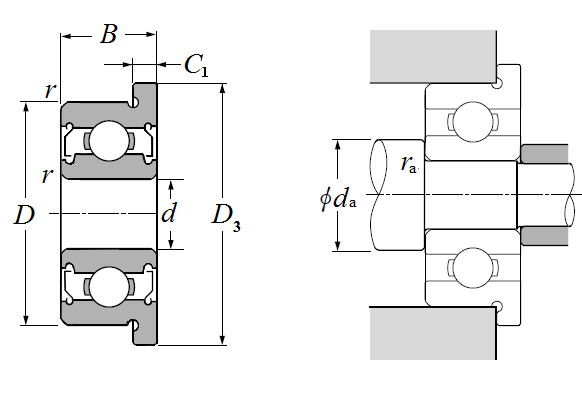

Dimensional Specifications
d
7.000 mm
D
13.000 mm
B
4.000 mm
D3
14.600 mm
C1
0.800 mm
r
0.150 mm
da min
8.200 mm
da max
8.900 mm
Da max
11.800 mm
ras max
0.150 mm
