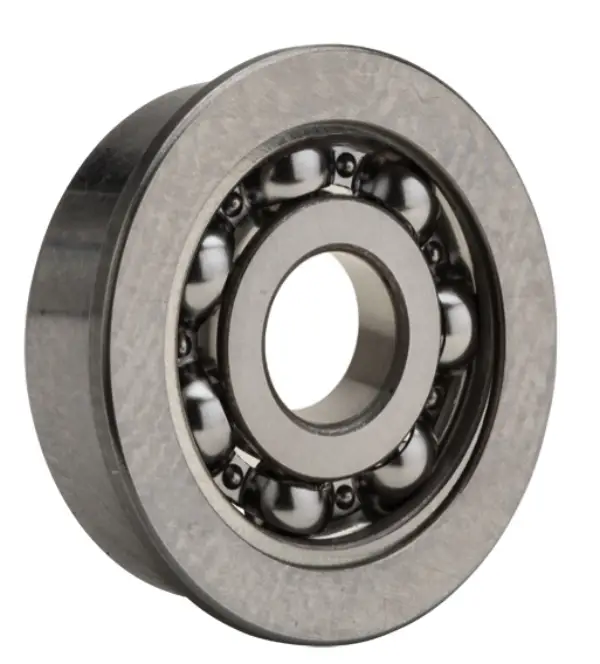

NTN FLBC2-6
Single Row Radial Ball Bearings
(BRAND)：NTN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Technical Specifications
Type
Miniature / Extra Small Ball Bearing
Bore Type
Round
Material
High Carbon Chrome Steel
Cage Type
Stainless (Crown Type)
Cage Material
Steel
Limiting Speed - Oil
79000 RPM
Limiting Speed - Grease
67000 RPM
Precision
Class 0
Configuration
One
Factor
12.8
Radial Internal Clearance
CN
Static Load Rating
89 N
Dynamic Load Rating
279 N
Enclosure
Open
Operating Temperature Range
-40 to 120 ºC

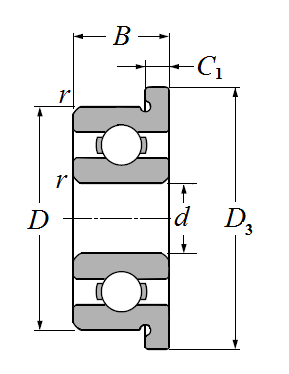

Dimensional Specifications
d
2.000 mm
D
6.000 mm
B
2.500 mm
D3
7.200 mm
C1
0.600 mm
r
0.150 mm
da min
3.200 mm
da max
3.300 mm
Da max
4.800 mm
ras max
0.150 mm
