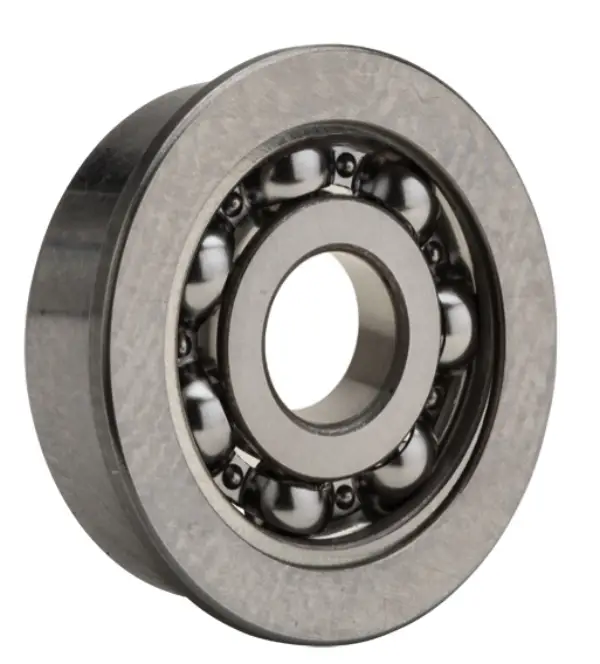

NTN FLBC4-8
Single Row Radial Ball Bearings
(BRAND)：NTN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Technical Specifications
Type
Miniature / Extra Small Ball Bearing
Bore Type
Round
Material
High Carbon Chrome Steel
Cage Type
Stainless (Crown Type)
Cage Material
Steel
Limiting Speed - Oil
61000 RPM
Limiting Speed - Grease
52000 RPM
Precision
Class 0
Configuration
One
Factor
13.9
Radial Internal Clearance
CN
Static Load Rating
140 N
Dynamic Load Rating
395 N
Enclosure
Open
Operating Temperature Range
-40 to 120 ºC

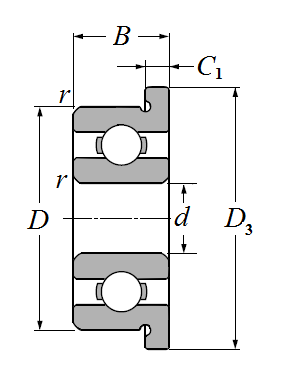

Dimensional Specifications
d
4.000 mm
D
8.000 mm
B
2.000 mm
D3
9.200 mm
C1
0.600 mm
r
0.080 mm
da min
4.800 mm
da max
5.000 mm
Da max
6.800 mm
ras max
0.080 mm
