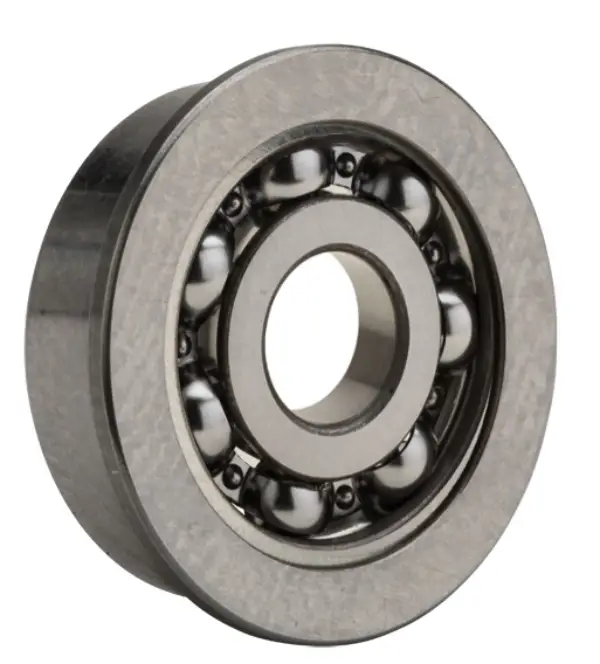

NTN FLR133
Single Row Radial Ball Bearings
(BRAND)：NTN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Technical Specifications
Type
Miniature / Extra Small Ball Bearing
Bore Type
Round
Material
High Carbon Chrome Steel
Cage Type
Stainless (Crown Type)
Cage Material
Steel
Limiting Speed - Oil
85000 RPM
Limiting Speed - Grease
73000 RPM
Precision
Class 0
Configuration
One
Factor
14.8
Radial Internal Clearance
CN
Static Load Rating
42 N
Dynamic Load Rating
124 N
Enclosure
Open
Operating Temperature Range
-40 to 120 ºC

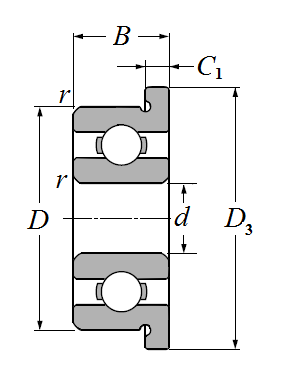

Dimensional Specifications
d
2.380 mm
D
4.762 mm
B
1.588 mm
D3
5.940 mm
C1
0.460 mm
r
0.080 mm
da min
2.900 mm
da max
3.100 mm
Da max
4.000 mm
ras max
0.080 mm
