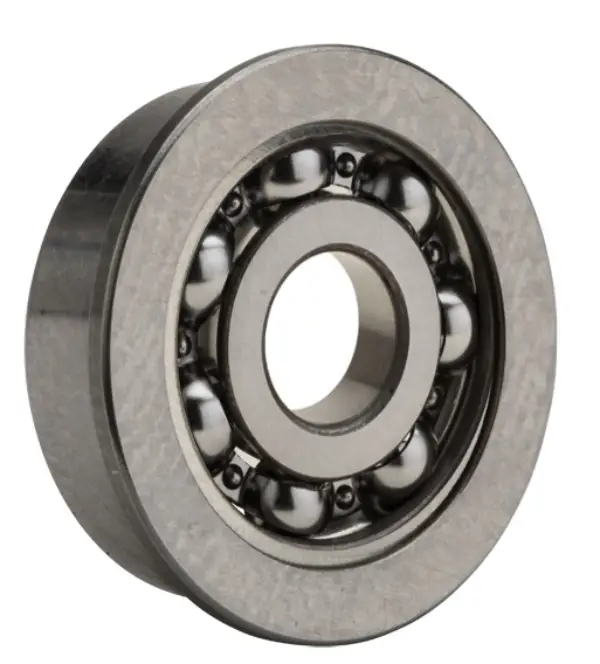

NTN FLR155
Single Row Radial Ball Bearings
(BRAND)：NTN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Technical Specifications
Type
Miniature / Extra Small Ball Bearing
Bore Type
Round
Material
High Carbon Chrome Steel
Cage Type
Stainless (Crown Type)
Cage Material
Steel
Limiting Speed - Oil
60000 RPM
Limiting Speed - Grease
51000 RPM
Precision
Class 0
Configuration
One
Factor
14.8
Radial Internal Clearance
CN
Static Load Rating
133 N
Dynamic Load Rating
335 N
Enclosure
Open
Operating Temperature Range
-40 to 120 ºC

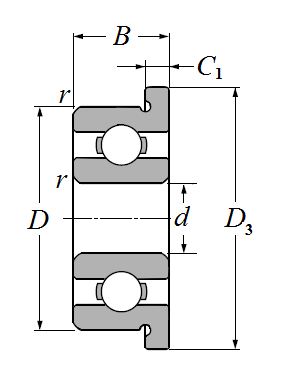

Dimensional Specifications
d
3.967 mm
D
7.938 mm
B
2.779 mm
D3
9.120 mm
C1
0.580 mm
r
0.080 mm
da min
4.800 mm
da max
5.300 mm
Da max
7.000 mm
ras max
0.080 mm
