NTN FLR6ZZ
Single Row Radial Ball Bearings
(BRAND)：NTN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Technical Specifications
Type
Miniature / Extra Small Ball Bearing
Bore Type
Round
Material
High Carbon Chrome Steel
Cage Type
Stainless (Snap Type)
Cage Material
Steel
Limiting Speed - Grease
31000 RPM
Precision
Class 0
Configuration
One
Factor
12.7
Radial Internal Clearance
CN
Static Load Rating
1400 N
Dynamic Load Rating
3300 N
Enclosure
Double Shielded
Operating Temperature Range
-40 to 120 ºC

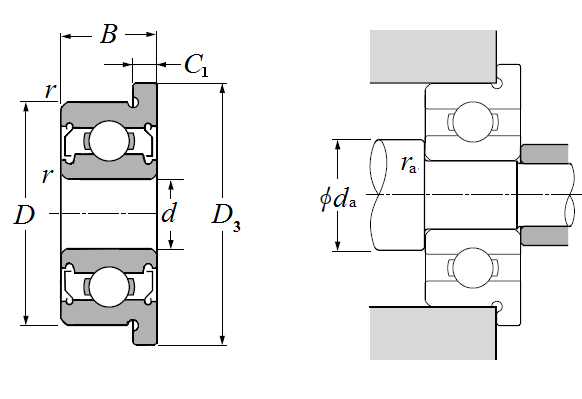

Dimensional Specifications
d
9.525 mm
D
22.225 mm
B
7.142 mm
D3
24.610 mm
C1
1.570 mm
r
0.410 mm
da min
11.500 mm
da max
11.900 mm
Da max
20.200 mm
ras max
0.400 mm
