NTN FLRA156ZZ
Single Row Radial Ball Bearings
(BRAND)：NTN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Technical Specifications
Type
Miniature / Extra Small Ball Bearing
Bore Type
Round
Material
High Carbon Chrome Steel
Cage Type
Stainless (Crown Type)
Cage Material
Steel
Limiting Speed - Grease
49000 RPM
Precision
Class 0
Configuration
One
Factor
14.2
Radial Internal Clearance
CN
Static Load Rating
143 N
Dynamic Load Rating
395 N
Enclosure
Double Shielded
Operating Temperature Range
-40 to 120 ºC

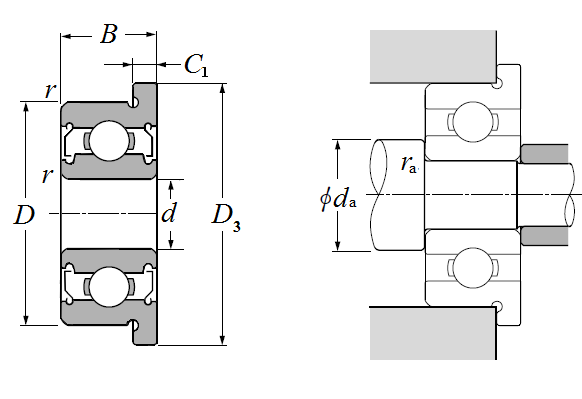

Dimensional Specifications
d
4.762 mm
D
7.938 mm
B
3.175 mm
D3
9.120 mm
C1
0.910 mm
r
0.080 mm
da min
5.500 mm
da max
5.600 mm
Da max
7.000 mm
ras max
0.080 mm
