NTN FLRA168AZZ
Single Row Radial Ball Bearings
(BRAND)：NTN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Technical Specifications
Type
Miniature / Extra Small Ball Bearing
Bore Type
Round
Material
High Carbon Chrome Steel
Cage Type
Stainless (Crown Type)
Cage Material
Steel
Limiting Speed - Grease
43000 RPM
Precision
Class 0
Configuration
One
Factor
16.4
Radial Internal Clearance
CN
Static Load Rating
136 N
Dynamic Load Rating
268 N
Enclosure
Double Shielded
Operating Temperature Range
-40 to 120 ºC

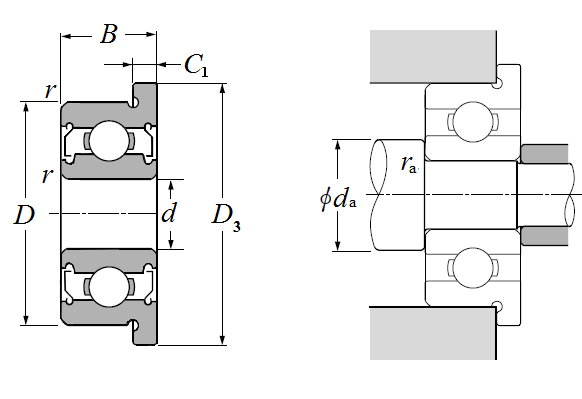

Dimensional Specifications
d
6.350 mm
D
9.525 mm
B
3.175 mm
D3
10.720 mm
C1
0.910 mm
r
0.080 mm
da min
7.100 mm
da max
7.300 mm
Da max
8.700 mm
ras max
0.080 mm
