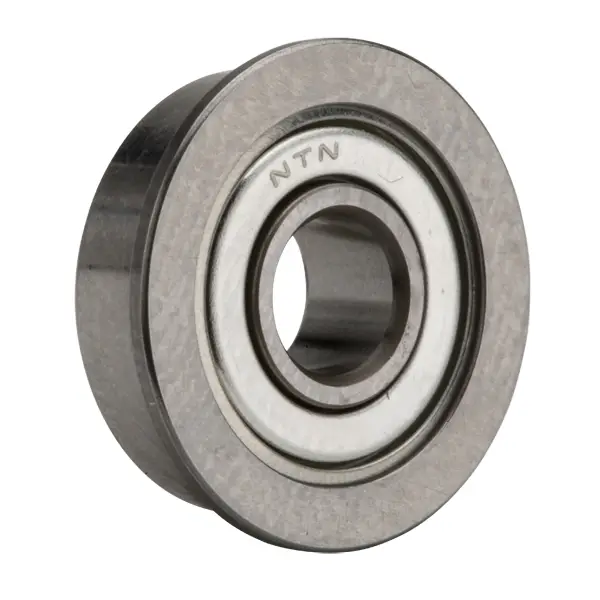

NTN FLRA2ZZA
Single Row Radial Ball Bearings
(BRAND)：NTN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Technical Specifications
Type
Miniature / Extra Small Ball Bearing
Bore Type
Round
Material
High Carbon Chrome Steel
Cage Type
Stainless (Snap Type)
Cage Material
Steel
Limiting Speed - Grease
49000 RPM
Precision
Class 0
Configuration
One
Factor
12.7
Radial Internal Clearance
CN
Static Load Rating
395 N
Dynamic Load Rating
1150 N
Enclosure
Double Shielded
Operating Temperature Range
-40 to 120 ºC

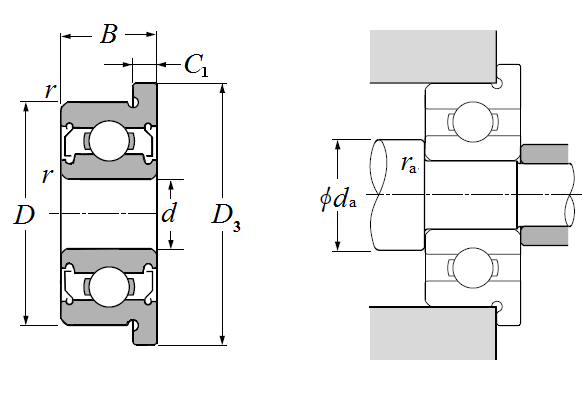

Dimensional Specifications
d
3.175 mm
D
9.525 mm
B
3.967 mm
D3
11.180 mm
C1
0.760 mm
r
0.300 mm
da min
4.800 mm
da max
5.200 mm
Da max
7.800 mm
ras max
0.300 mm
