NTN FLW60/1.5ZA
Single Row Radial Ball Bearings
(BRAND)：NTN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Technical Specifications
Type
Miniature / Extra Small Ball Bearing
Bore Type
Round
Outside Ring Type
Flanged
Material
High Carbon Chrome Steel
Cage Type
Pressed
Cage Material
Steel
Limiting Speed - Oil
84000 RPM
Limiting Speed - Grease
71000 RPM
Configuration
One
Factor
12.3
Static Load Rating
86 N
Dynamic Load Rating
274 N
Enclosure
Removable Double Shield
Weight
0.420 kg
Operating Temperature Range
-40 to 120 ºC

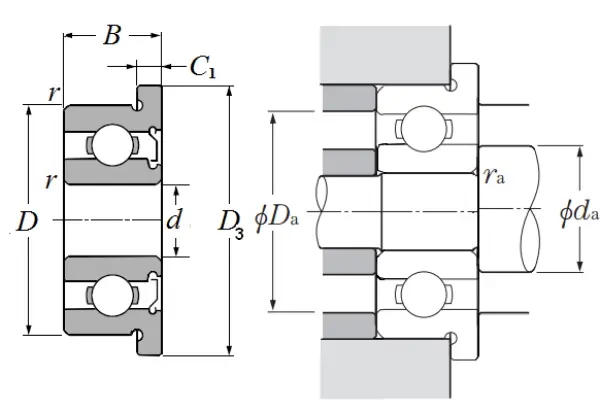

Dimensional Specifications
d
1.500 mm
D
6.000 mm
B
3.000 mm
D3
7.500 mm
C1
0.800 mm
r
0.150 mm
da min
2.700 mm
da max
3.000 mm
Da max
4.800 mm
ras max
0.150 mm
