NTN FLW60/2.5ZA
Single Row Radial Ball Bearings
(BRAND)：NTN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Technical Specifications
Type
Miniature / Extra Small Ball Bearing
Bore Type
Round
Outside Ring Type
Flanged
Material
High Carbon Chrome Steel
Cage Type
Pressed
Cage Material
Steel
Limiting Speed - Oil
66000 RPM
Limiting Speed - Grease
56000 RPM
Configuration
One
Factor
11.5
Static Load Rating
174 N
Dynamic Load Rating
550 N
Enclosure
Removable Double Shield
Weight
0.830 kg
Operating Temperature Range
-40 to 120 ºC

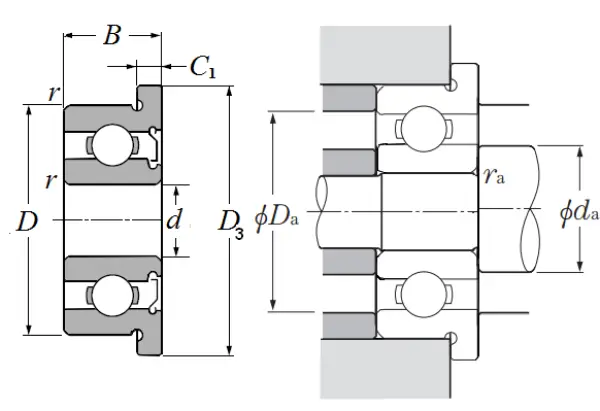

Dimensional Specifications
d
2.500 mm
D
8.000 mm
B
4.000 mm
D3
9.500 mm
C1
0.900 mm
r
0.150 mm
da min
3.700 mm
da max
4.100 mm
Da max
6.800 mm
ras max
0.150 mm
